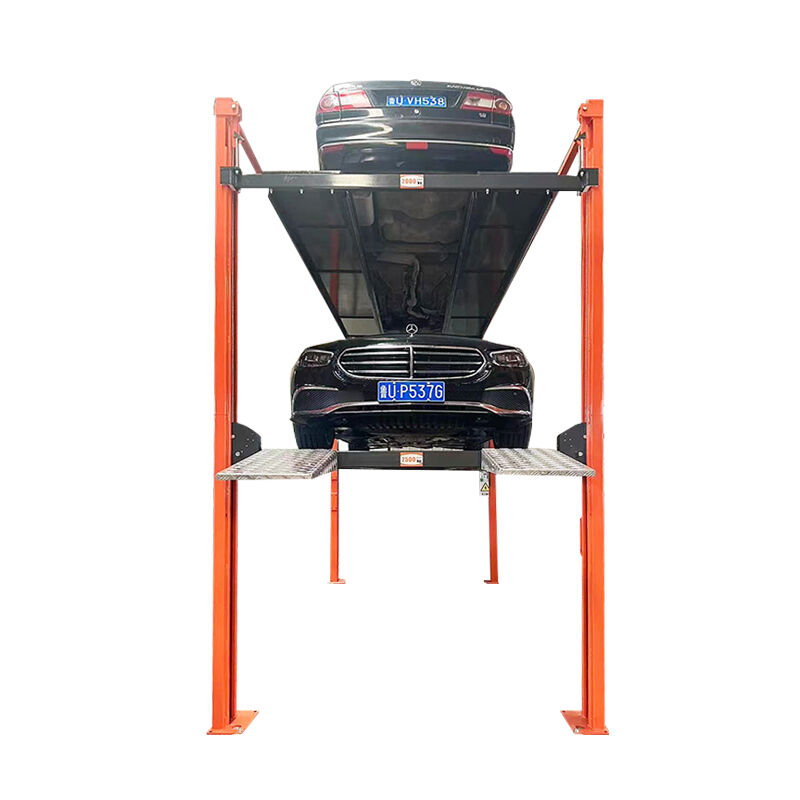

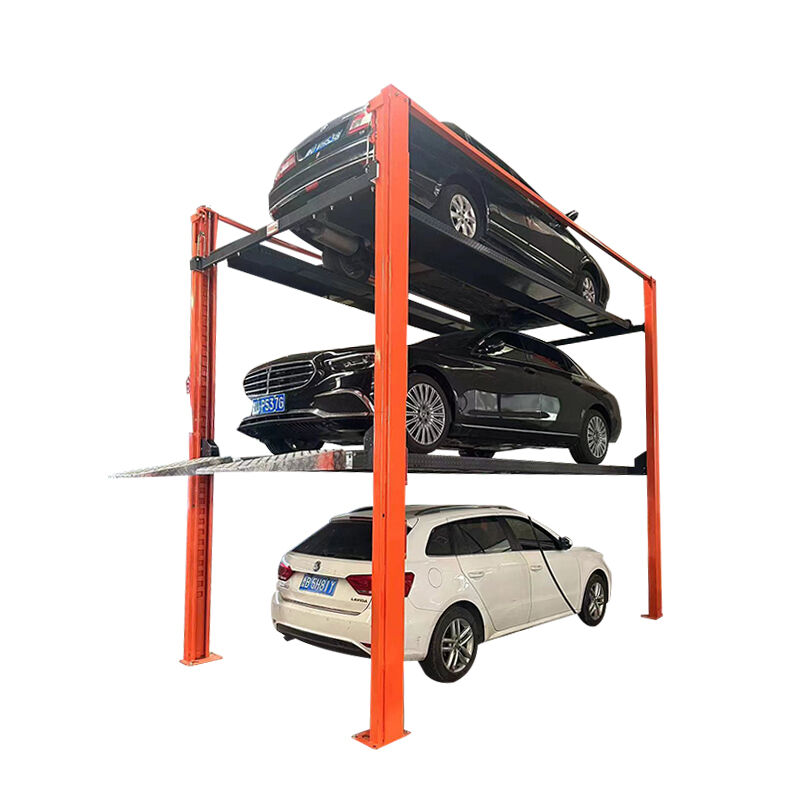

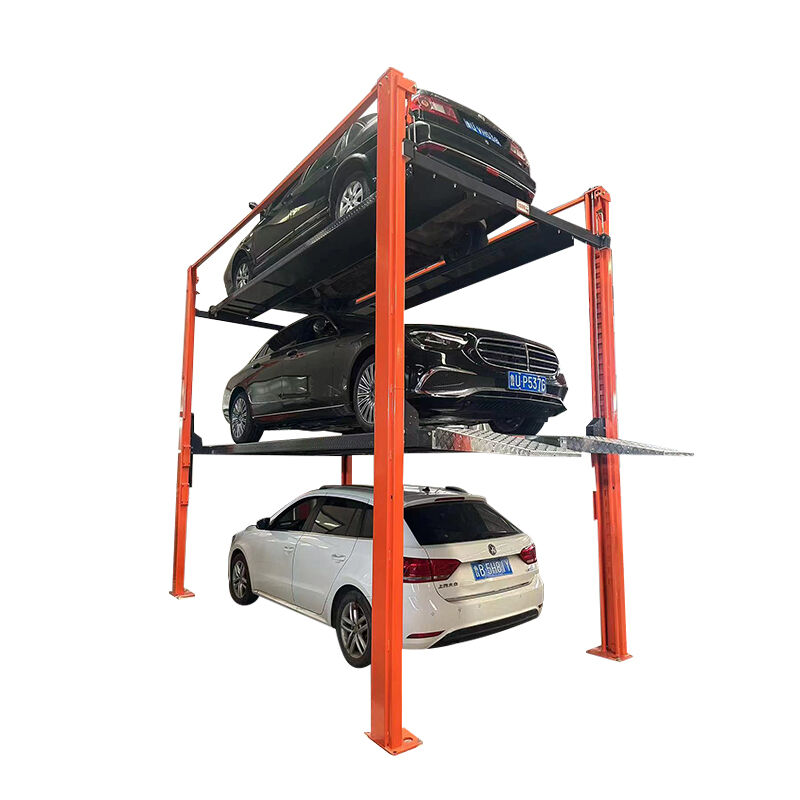

Electric Hydraulic Four Post Triple Stacker Lift

Product Brief Description:

The Electric Hydraulic Four Post Triple Stacker Lift stands as a high-efficiency vertical parking solution, specifically engineered with an integrated four-post structure to address intensive parking demands in space-constrained scenarios. Unlike traditional parking equipment, this lift is designed to maximize vertical space utilization, boasting a 2700kg load capacity that enables three vehicles to be stored vertically within a single standard parking space, drastically boosting the number of parking spots without expanding the occupied ground area.

It comes with dual lifting height options—1800mm and 1600mm—to flexibly fit varied ceiling heights of different parking facilities, eliminating the limitation of installation space caused by inconsistent building structures. The 1900mm-wide loading plate is thoughtfully designed to cater to most passenger car models on the market, including sedans, compact SUVs and hatchbacks, ensuring wide applicability.

Driven by a 2.2kw high-efficiency motor and compatible with both 220V civilian power supply and 380V industrial power supply, the lift delivers steady, secure and efficient operation throughout its service life. It integrates the advantages of an integrated four-post design with comprehensive safety configurations, combining reliability, practicality and safety into one, making it an ideal choice for scenarios where space optimization and operational reliability are top priorities.

Parameter Specification:

Key Features:

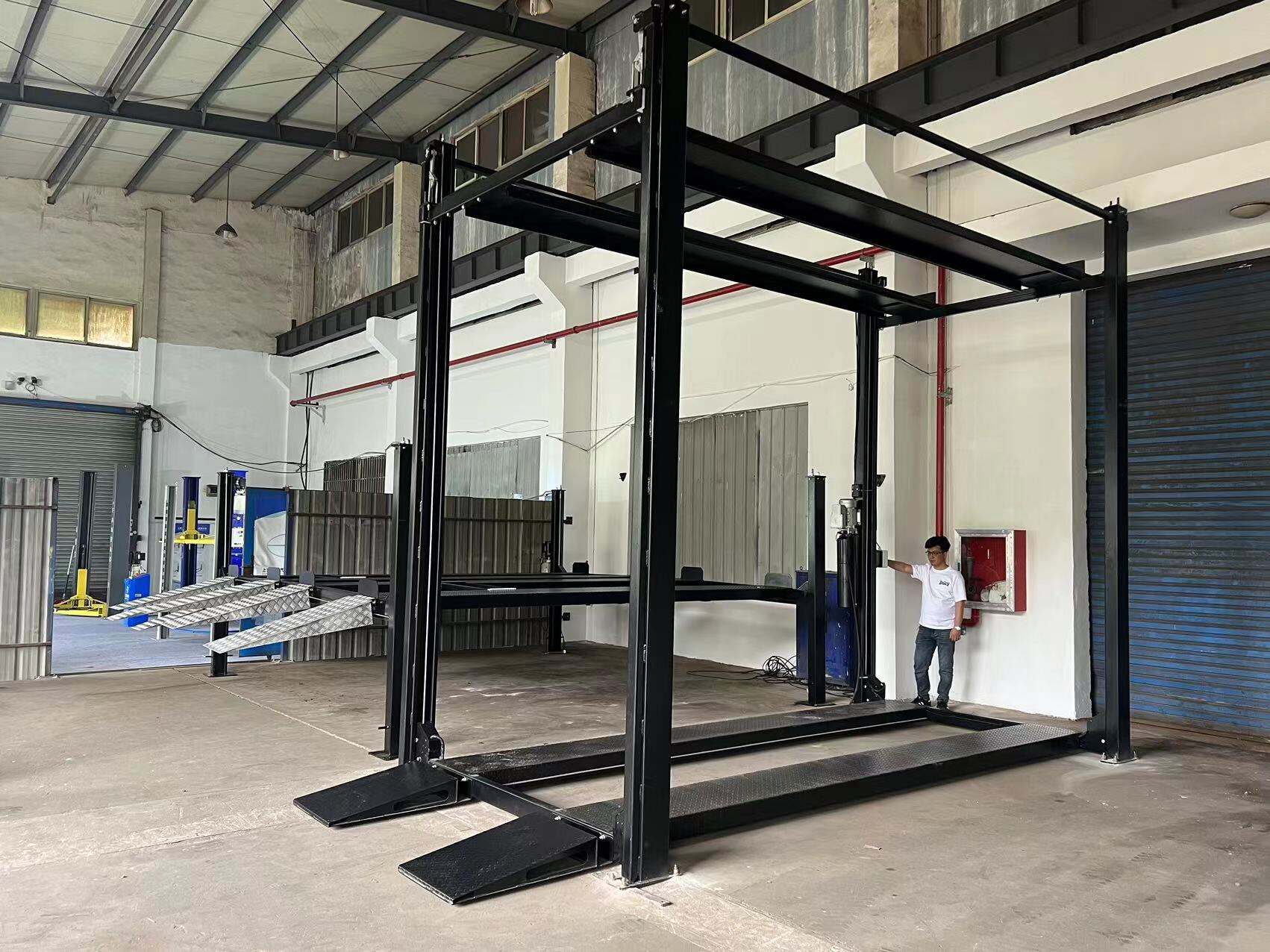

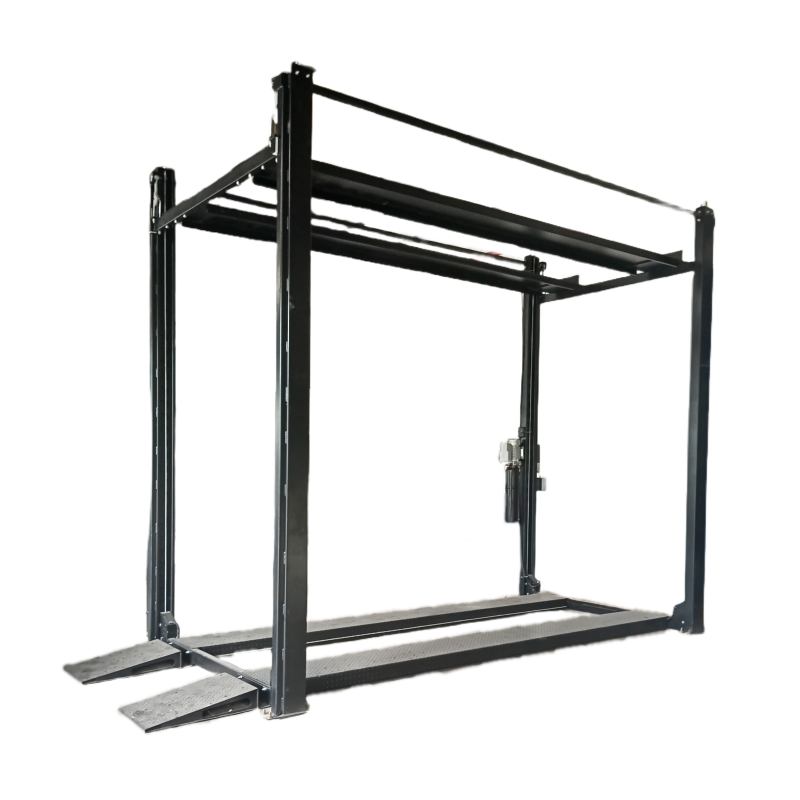

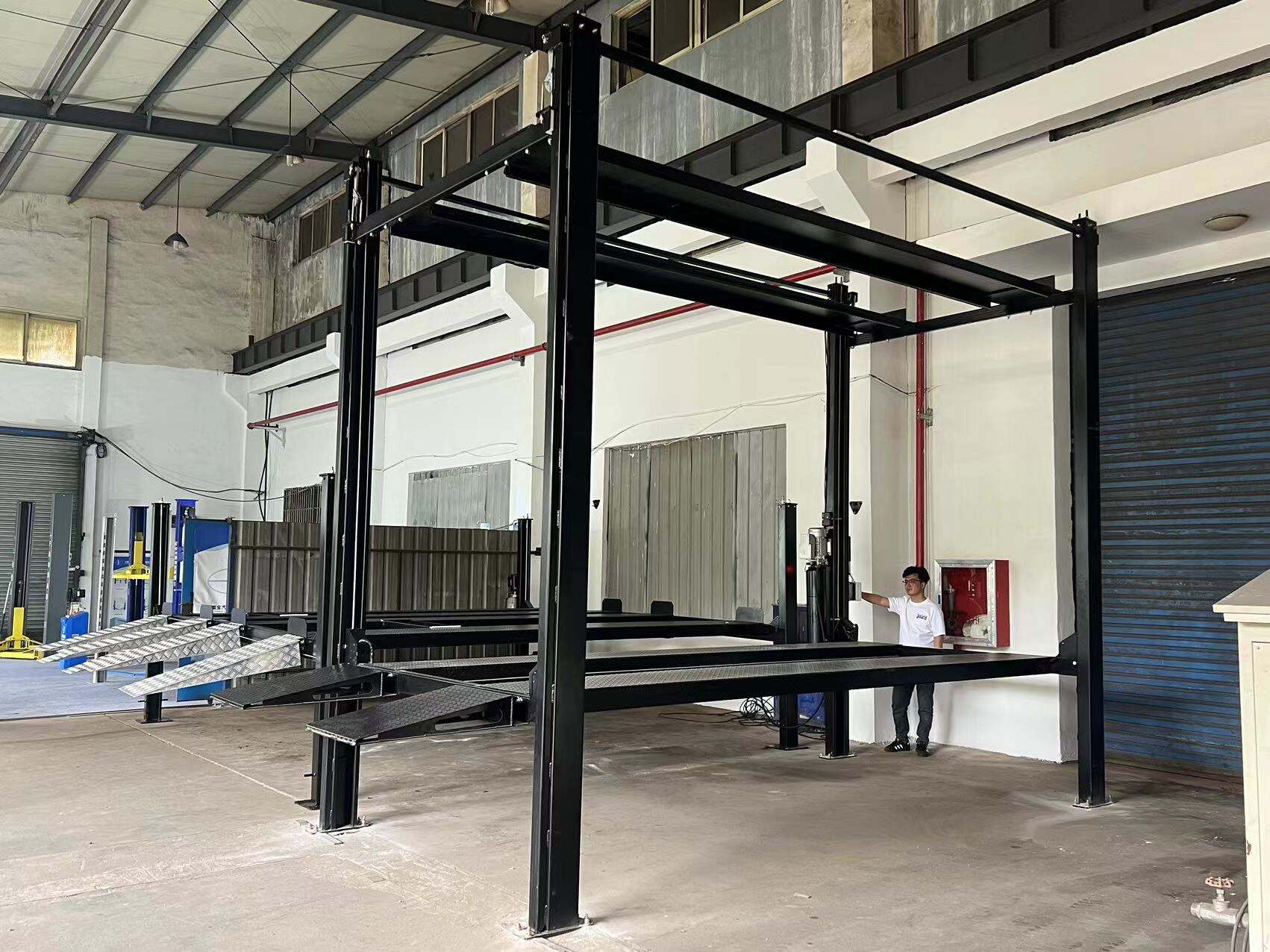

Integrated Four-Post Configuration: This lift combines separated external and internal four-post lifts into a unified, integrated structure, forming a stable triple-stacking system. This integrated design not only maximizes vertical parking potential by allowing three vehicles to be stored in one space but also ensures overall structural stability, avoiding the looseness or instability that may occur with combined separate lifts, thus guaranteeing safe operation even under full load.

Hydraulic-Rope Transmission System: It employs a high-performance hydraulic-driven cylinder paired with a rope lifting mechanism via sheaves, forming a precise and reliable transmission system. This combination realizes smooth, synchronized and stable lifting movements of each platform, while ensuring robust load support capacity that matches the 2700kg maximum load, effectively preventing platform tilting or jamming during operation.

Dual Safety Lock Safeguards: Each post of the lift is equipped with two independent safety locks, forming a dual-protection system to eliminate operational risks. One is an integrated adjustable safety lock ladder that can be flexibly adjusted according to different lifting heights to lock the platform firmly; the other is an automatic backup lock that activates instantly if steel wire rupture occurs, stopping the platform immediately to avoid accidents and protect vehicles and operators.

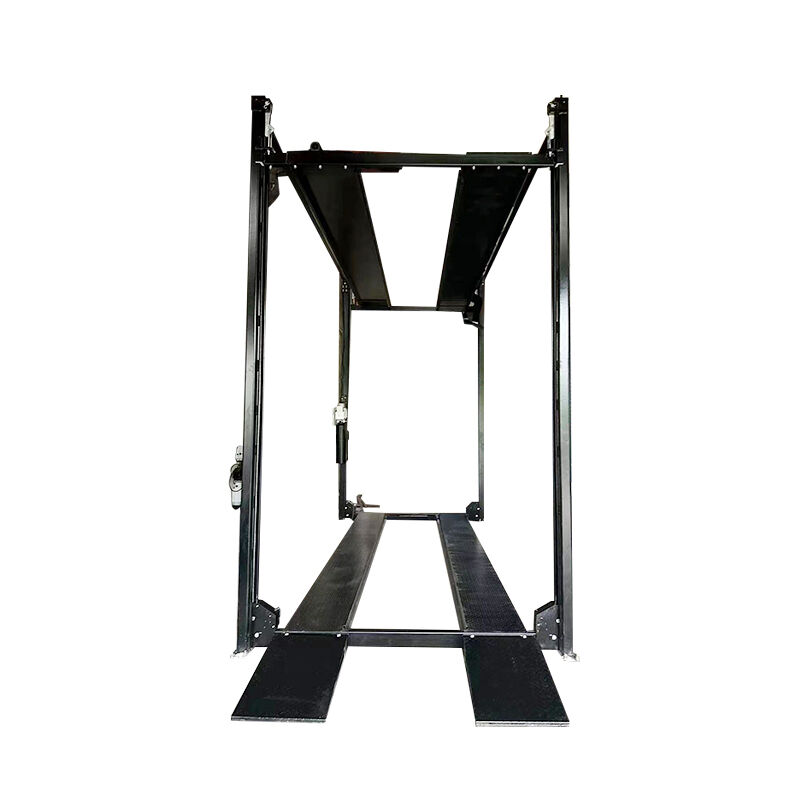

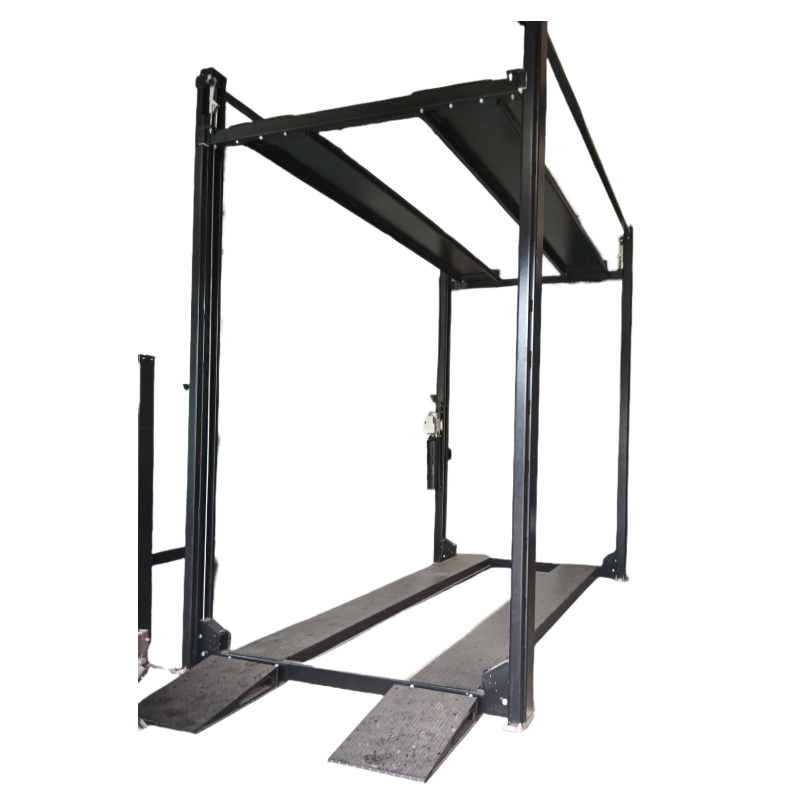

Foldable Sport Car-Friendly Ramps: The lift is equipped with foldable access ramps, which can be easily folded and stored when not in use, minimizing storage space occupation. These ramps are specially designed to accommodate sport cars with low ground clearance, effectively avoiding scratches on the vehicle chassis when driving onto the platform, thus expanding the lift's application scope to cover more vehicle types.

Electromagnetic-Controlled Locking System: It incorporates an automatic latch-locking mechanism within the safety lock ladders, paired with an electromagnetic release function triggered by a push button on the operation box. This design ensures convenient and safe operation—operators only need to press the button to release the lock, and the latch locks automatically when the platform reaches the designated height, avoiding manual operation errors and improving operational efficiency.

Independent Operation Interfaces: Each individual lift in the triple-stacking system is outfitted with a separate operation box, which is fixedly installed on the front right post for easy access. This independent control design allows operators to control each stacking layer separately without cross interference, enabling flexible operation such as lifting or lowering a single layer without affecting the other two, enhancing operational convenience.

Upper Platform Wheel Retainers: The upper two platforms of the lift are equipped with sturdy wheel stoppers, which can firmly secure the vehicle tires after the vehicle is parked. This effectively prevents any shifting or displacement of the vehicle during the lifting process or while in long-term storage, ensuring the safety of the parked vehicles and avoiding collisions between vehicles in different layers.

High-Grade Anti-Corrosion Finish: All steel components of the lift undergo professional sandblasting treatment first, which thoroughly removes rust, oil stains and other impurities on the surface. Then, they are coated with anti-corrosion primer and a final topcoat, forming a dense and durable protective layer. This high-grade anti-corrosion finish ensures long-lasting durability of the equipment and strong resistance to humid, dusty or other corrosive environments, reducing later maintenance costs.

Applications:

High-density residential areas: Suitable for residential communities with dense populations and insufficient parking spaces, making full use of vertical space to increase parking capacity significantly, solving the problem of difficult parking for residents and improving their living comfort.

Commercial property parking facilities: Applicable to parking garages of shopping malls, office buildings, hotels and other commercial properties, maximizing the utilization of limited parking space to provide more parking services for customers and employees, enhancing the overall service quality and competitiveness of the property.

Car dealership showrooms and storage yards: Ideal for car dealerships, used for orderly storage and display of new cars, test-drive vehicles or used cars. It saves storage space, makes vehicle display more standardized and attractive, and facilitates customers to view and select vehicles.

Urban central parking lots: Suitable for urban central areas where land resources are scarce and parking demand is high, helping to make full use of limited land to build more parking spaces, alleviating urban parking pressure.

Vehicle rental and fleet management companies: Applicable to vehicle rental companies and fleet management enterprises, used for orderly storage of rental vehicles or fleet vehicles, saving storage space, facilitating vehicle management and scheduling, and improving operational efficiency.

Corporate campuses and industrial parks: Suitable for corporate campuses and industrial parks with a large number of employees and vehicles, providing a space-saving and safe parking solution, ensuring orderly parking on the campus and improving the overall management level of the park.
