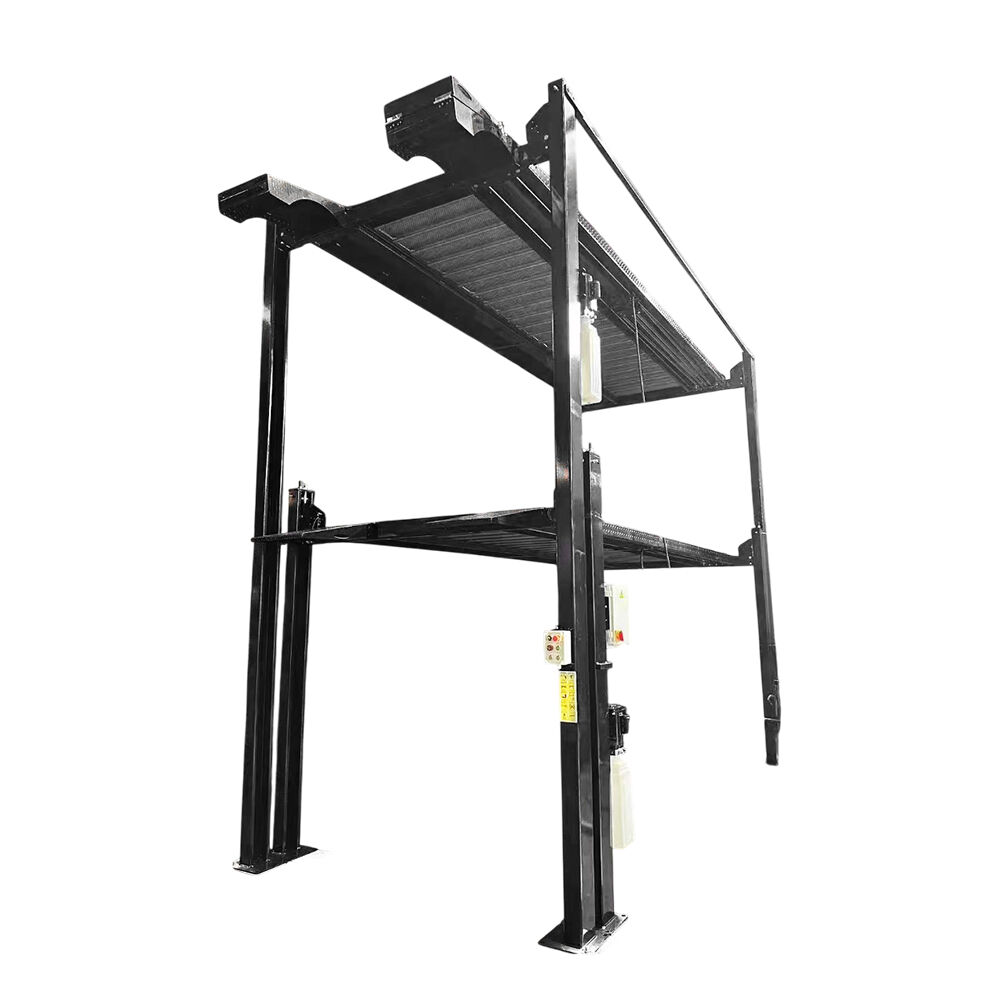

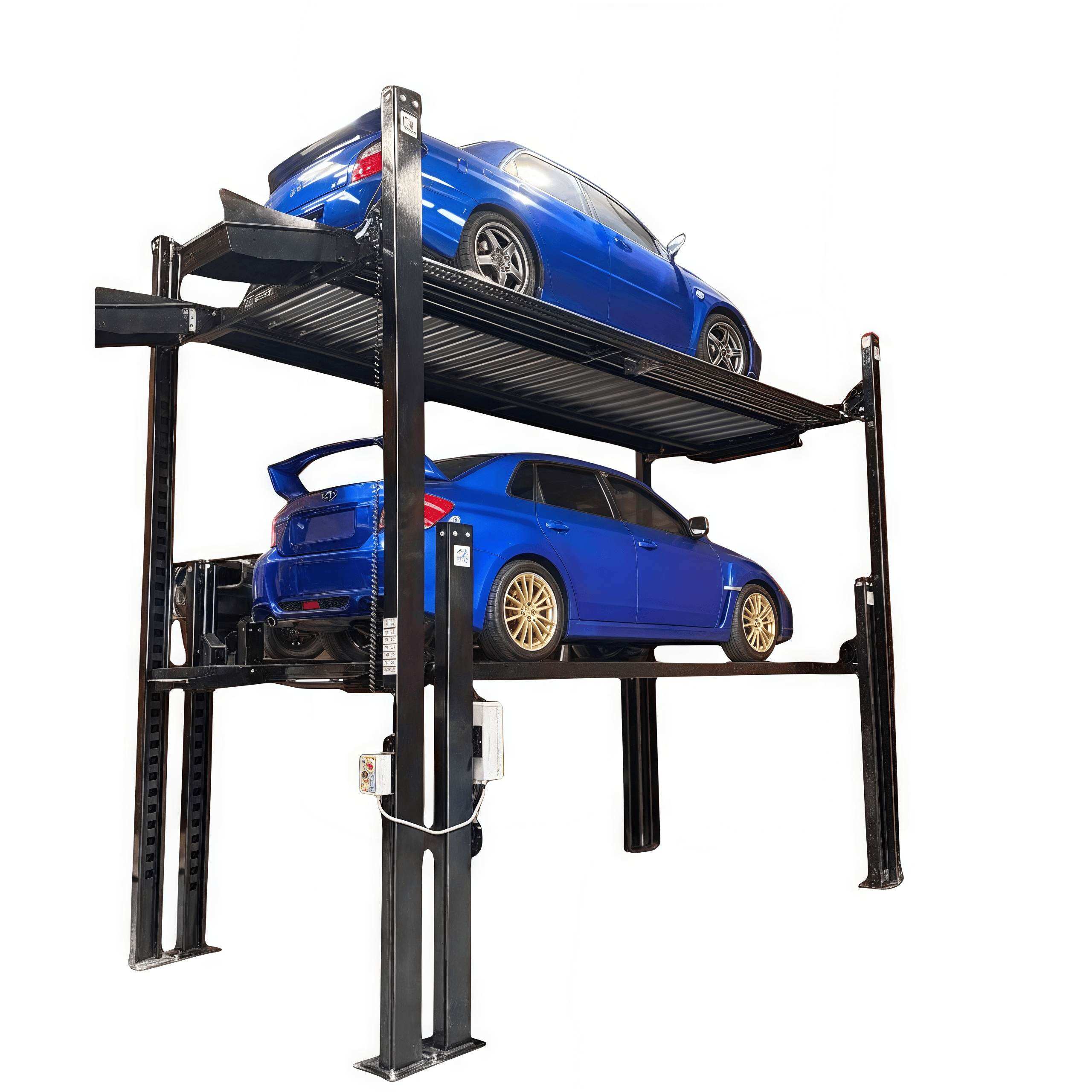

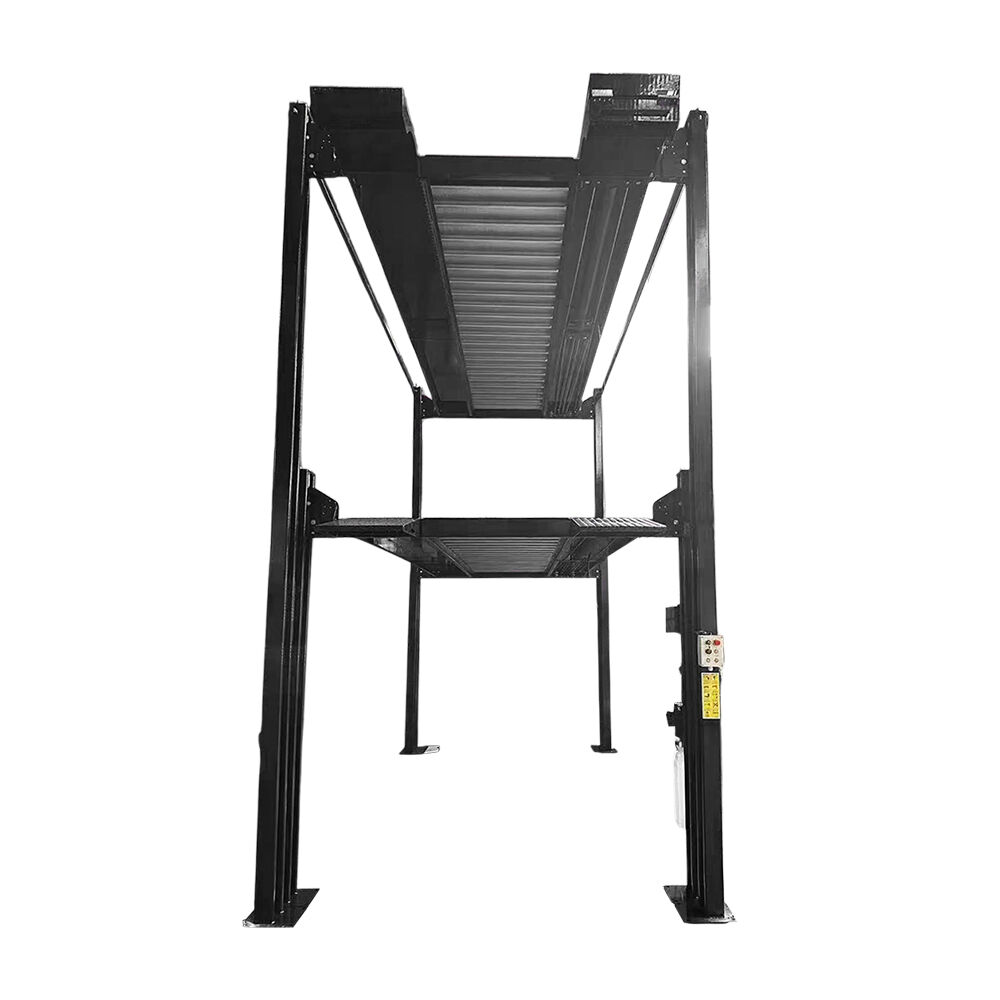

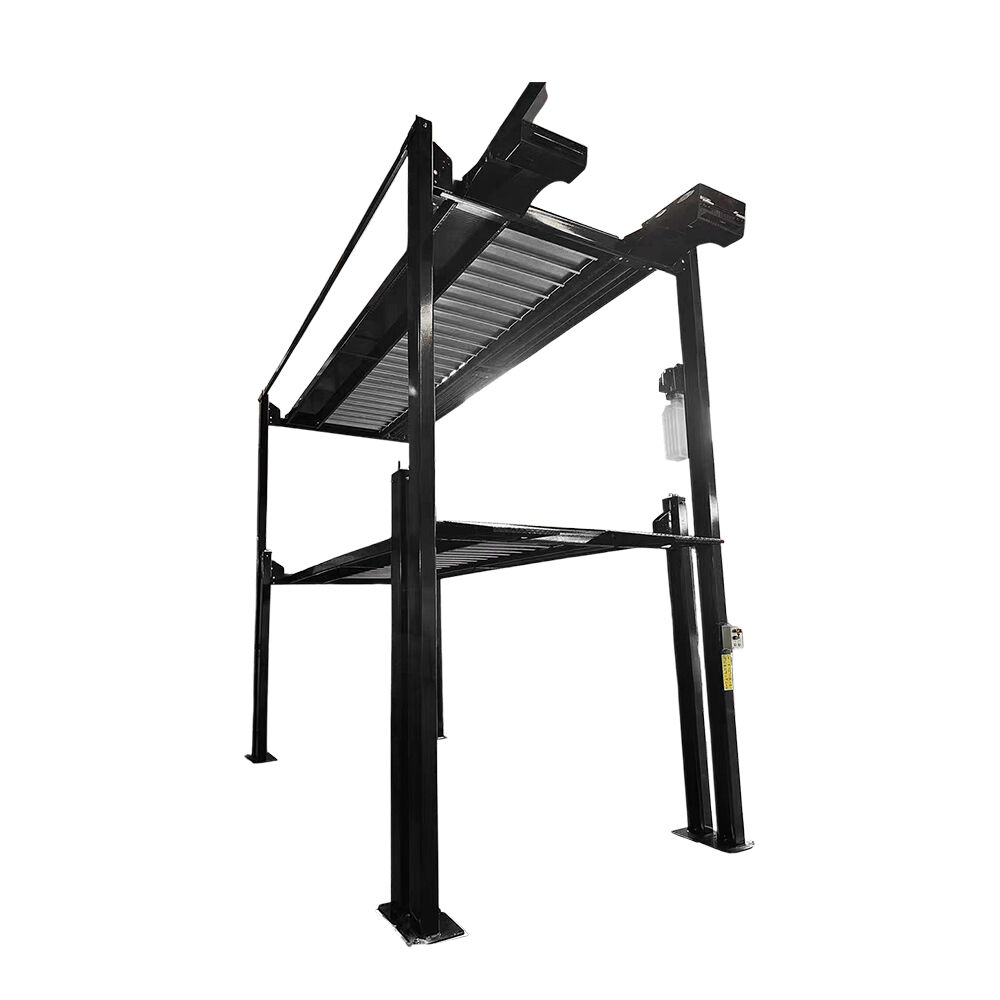

Electric Hydraulic Four-Post Triple Stacking Lift

Product Brief Description:

The Electric Hydraulic Four Post Triple Stacker Lift redefines space-efficient vehicle storage with a professional-grade design specifically tailored for high-density parking needs in various scenarios. Unlike conventional parking equipment, this lift integrates a high-performance electric-hydraulic drive system with a robust four-post structure, forming a stable and efficient triple-stacking storage solution that optimizes space utilization to the greatest extent.

It supports a 2700kg load capacity, which is sufficient to enable the safe storage of three vehicles within the footprint of a single standard parking space, drastically increasing parking capacity without expanding the occupied ground area. To adapt to different ceiling heights and space constraints of various parking facilities, it offers dual lifting height options—1800mm and 1600mm—eliminating installation limitations caused by inconsistent building structures.

The 1900mm-wide loading plate is thoughtfully designed to accommodate a variety of passenger vehicles on the market, including sedans, compact SUVs and hatchbacks, ensuring wide applicability. Equipped with a 2.2kw high-efficiency motor and compatible with both 220V civilian power supply and 380V industrial power supply, it delivers stable and reliable performance for residential, commercial, and industrial parking scenarios, perfectly combining space-saving efficiency with comprehensive safety features to meet diverse user needs.

Parameter Specification:

Key Features:

Modular Four-Post Design: This lift is composed of separated external and internal four-post lifts installed in a scientific combination, forming a stable triple-stacking configuration. The modular design allows for flexible assembly and disassembly, facilitating transportation and installation while maximizing vertical parking space. It ensures structural stability even under full load, avoiding potential looseness or deformation that may occur with integrated designs in long-term use.

Hydraulic-Rope Lifting System: It adopts a high-quality hydraulic-driven cylinder paired with a precise rope lifting mechanism via sheaves, forming a reliable transmission system. This combination ensures smooth, synchronized elevation of each stacking platform, eliminating tilting or jamming during operation, while providing stable load-bearing capacity that matches the 2700kg maximum load, effectively protecting parked vehicles.

Dual Safety Lock Protection: Each post of the lift is fitted with two independent safety locks, forming a dual-protection system to fully avoid operational accidents. One is a one-piece adjustable safety lock ladder that can be flexibly adjusted according to different lifting heights to lock the platform firmly in place; the other is an automatic secondary lock that activates instantly in the event of steel wire rupture, stopping the platform immediately to prevent falling and protect both vehicles and operators.

Foldable Sport Car-Compatible Ramps: The lift is equipped with foldable access ramps, which can be easily folded and stored when not in use, minimizing space occupation. These ramps are specially designed to suit sport cars with lower ground clearance, effectively preventing scratches on the vehicle chassis when driving onto the platform, thus enhancing the lift's versatility and expanding its application scope to cover more vehicle types.

Electromagnetic Lock Control: It incorporates an automatic latch-locking system within the safety lock ladders, paired with an electromagnetic lock release function controlled via a push button on the operation box. This design simplifies operation while ensuring safety—operators only need to press the button to release the lock, and the latch locks automatically when the platform reaches the designated height, avoiding manual operation errors and improving operational efficiency.

Independent Operation Boxes: Each lift in the triple-stacking system is equipped with a separate operation box, which is fixedly mounted on the front right post for easy access and operation. This independent control design allows operators to control each stacking layer individually without mutual interference, enabling flexible operation such as lifting or lowering a single layer without affecting the other two, greatly enhancing operational convenience.

Upper Platform Wheel Stoppers: The upper two platforms of the lift are equipped with sturdy wheel stoppers, which can firmly secure vehicle tires after the vehicle is parked. This effectively prevents vehicle displacement during the lifting process or long-term storage, ensuring the safety of parked vehicles and avoiding collisions between vehicles in different stacking layers.

Premium Anti-Corrosion Treatment: All steel components of the lift undergo professional sandblasting treatment first, which thoroughly removes rust, oil stains, and other surface impurities. Then, they are coated with anti-corrosion primer and a high-quality topcoat, forming a dense protective layer. This premium anti-corrosion treatment ensures long-term durability of the equipment and strong resistance to harsh environmental conditions such as humidity and dust, reducing later maintenance costs.

Applications:

High-density residential communities: Suitable for residential communities with dense populations and insufficient parking spaces, it makes full use of vertical space to significantly increase parking capacity, solving the problem of difficult parking for residents and improving their living experience.

Commercial building parking garages: Applicable to parking garages of shopping malls, office buildings, and other commercial buildings, it maximizes the utilization of limited parking space to provide more parking services for customers and employees, enhancing the overall service quality of the commercial building.

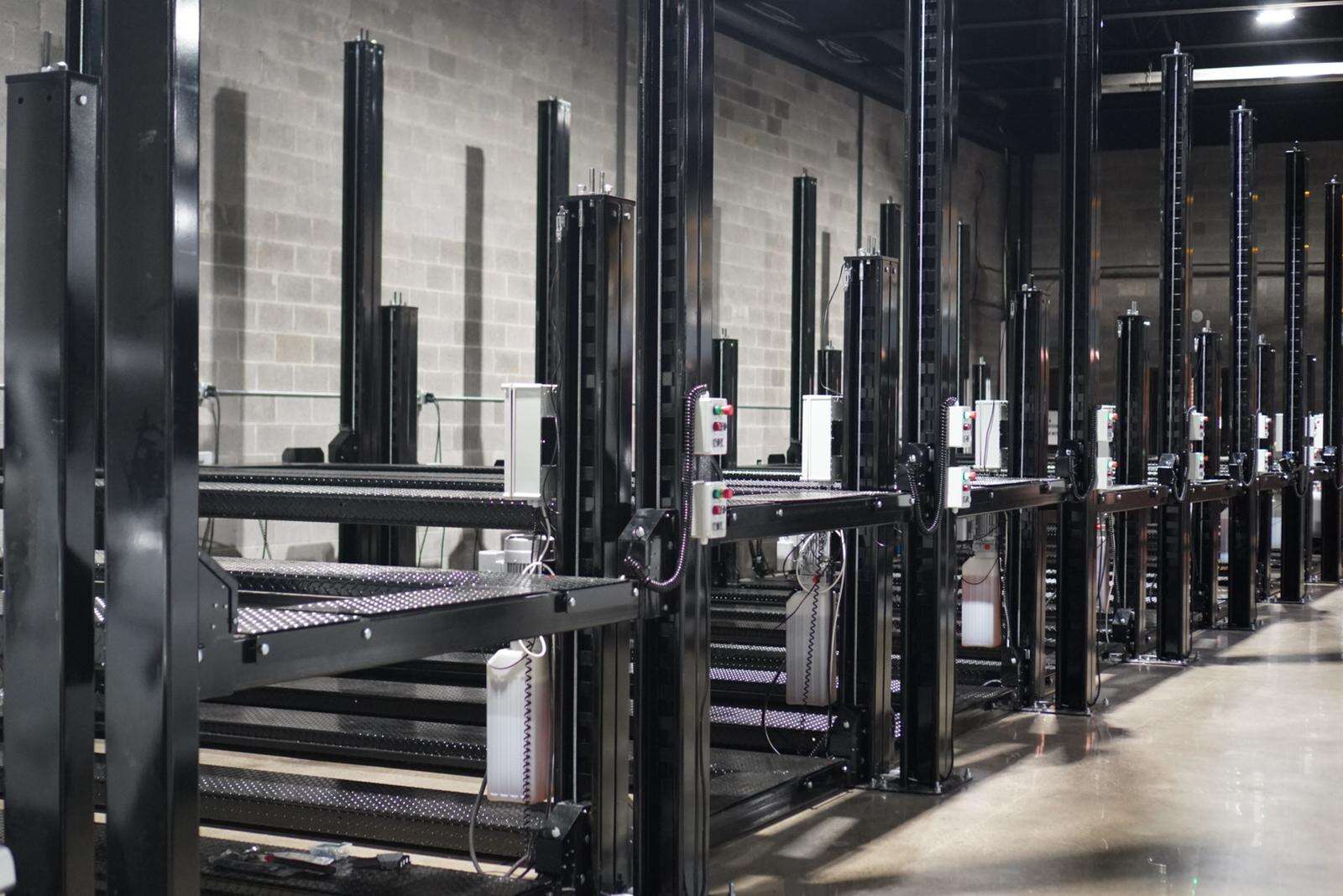

Car dealerships and vehicle storage facilities: Ideal for car dealerships and professional vehicle storage facilities, it is used for orderly storage and display of new cars, test-drive vehicles, or used cars, saving storage space and making vehicle management more standardized.

Urban parking lots: Suitable for urban parking lots where land resources are scarce and parking demand is high, it helps to make full use of limited land to build more parking spaces, effectively alleviating urban parking pressure.

Car rental companies: Applicable to car rental companies, it provides an orderly storage solution for rental vehicles, saving storage space, facilitating vehicle scheduling and management, and improving the operational efficiency of the company.

Industrial parks and office complexes: Suitable for industrial parks and office complexes with a large number of employees and vehicles, it provides a space-saving and safe parking solution, ensuring orderly parking and improving the overall management level of the park or complex.
