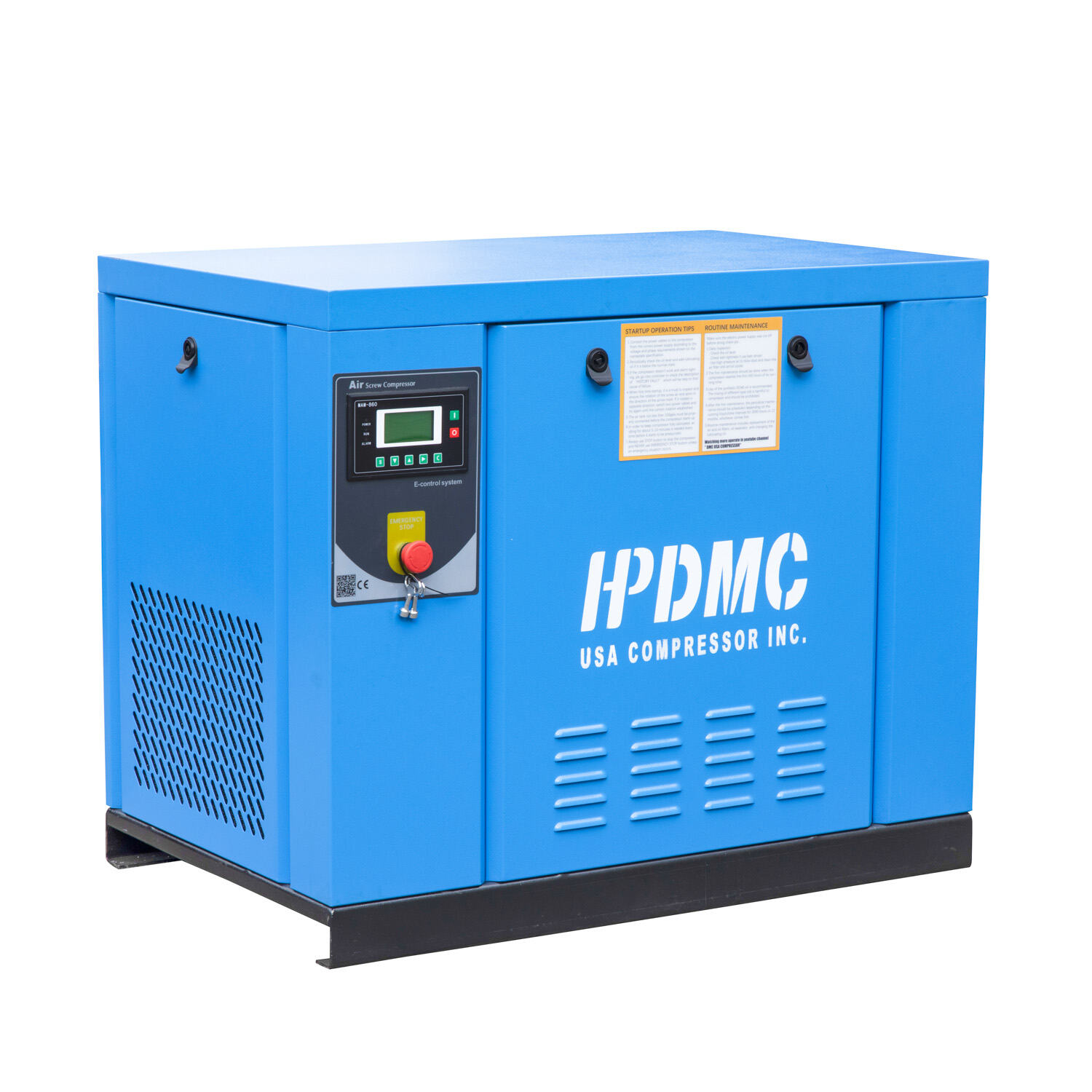

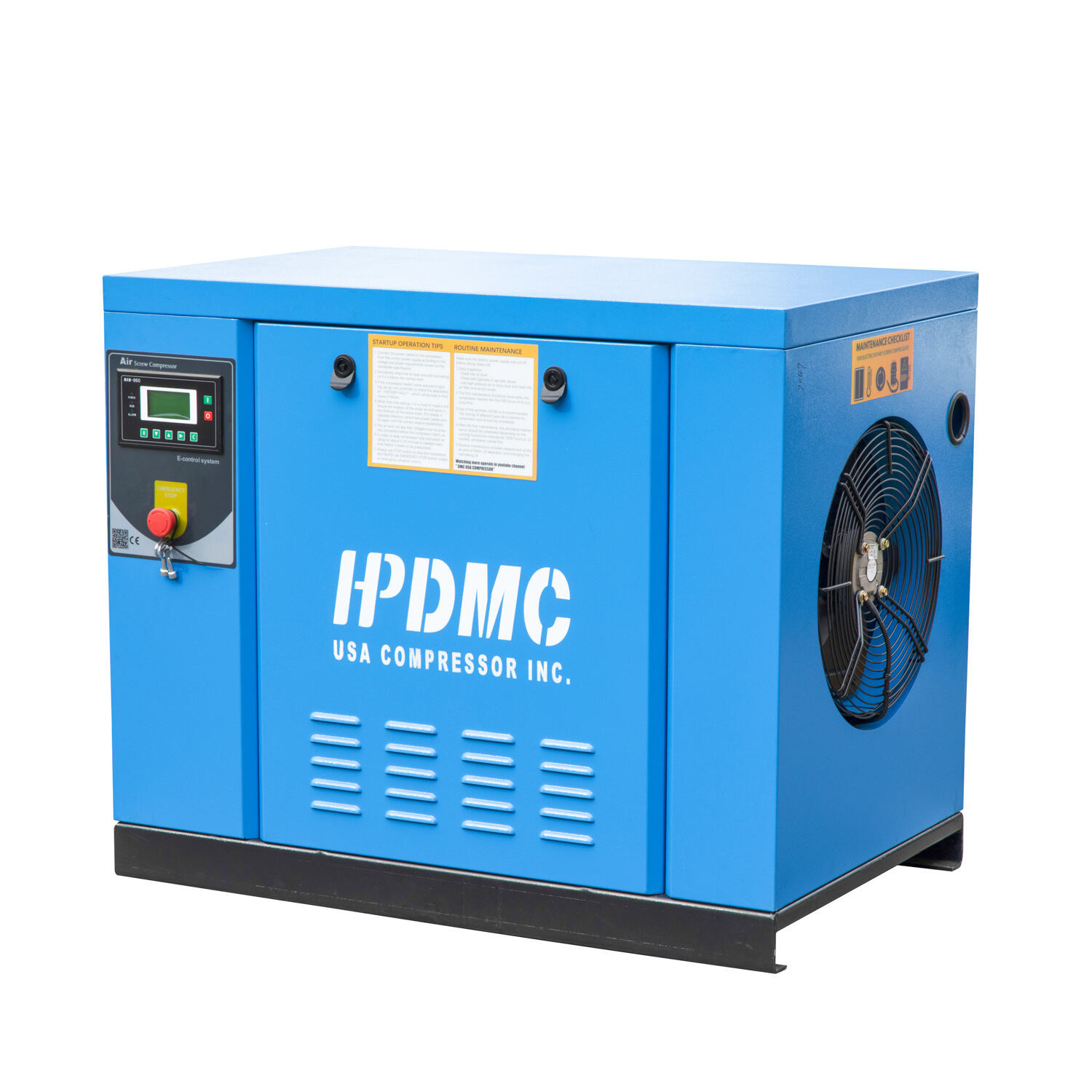

Professional Screw Air Compressor PACK7
The PACK7 are produced with steel and applications are mining, metallurgy, machinery manufacturing, civil engineering, petrochemical industry, refrigeration and gas separation engineering...
- Overview
- Recommended Products
Screw Air Compressor Details:
This model offers a flow rate of 1.1m³/min (39cfm) and operates at a working pressure of 8bar (115psi). It features a PLC control system, belt-driven mechanism, and air cooling. The electric motor is customizable to 220V/380V/460V, with a power of 7.5 KW (10 HP).
The PACK7 is designed for efficiency and reliability, with a noise level of less than 60 dB and a discharge temperature below ambient +8℃. Its compact dimensions (980-650-810mm) and weight (280kg) make it an ideal choice for various applications.
Screw Air Compressor Specification:
| Name | Screw air compressor |
| Model | PACK7 |
| Flow rate | 1.1m³/min 39cfm |
| Working pressure | 8bar 115psi |
| OEM | 7-16bar |
| Control | PLC |
| Driven | belt |
| Cooling | by air |
| Electric motor | 7.5 KW 10 HP，220V/380V/460V can be customized |
| Discharge temperature | less than ambient +8 ℃ |
| Dimension | 980-650-810mm |
| Noise | Less than 60 dB |
| Weight | 280kg |
Screw Air Compressor Application Scenarios：
Screw Air Compressor PACK7, a testament to innovation in air compression technology. The PACK7 boasts a robust flow rate of 1.1m³/min (39cfm) at a standard working pressure of 8bar (115psi), with OEM customization options ranging from 7-16bar to suit your specific requirements.
Engineered for optimal control and efficiency, the PACK7 is equipped with an advanced PLC system and is belt-driven, ensuring smooth operation. The air cooling feature maintains a low discharge temperature, consistently less than ambient +8℃, safeguarding your operations from overheating risks.
The unit's electric motor is versatile, with the ability to adapt to various voltages (220V/380V/460V), and delivers a powerful 7.5 KW (10 HP) performance. Despite its power, the PACK7 operates quietly at less than 60 dB, minimizing noise pollution in your workspace.
With dimensions of 980-650-810mm and a weight of 280kg, the PACK7 is designed for ease of installation and mobility within different industrial settings. Its compact footprint and efficient design make it an excellent addition to your equipment portfolio.
