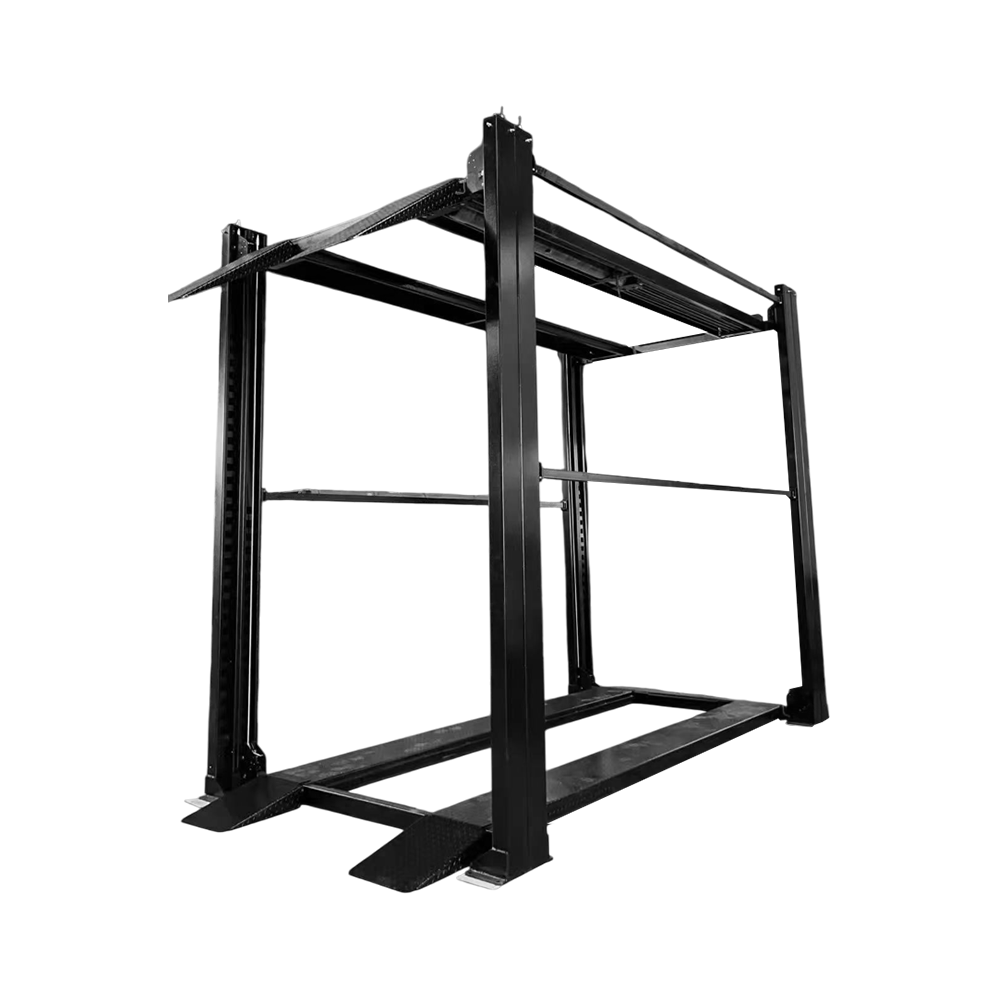

Electric Hydraulic Four-Post Three-Level Stereo Parking Lift

Product Brief Description:

The Electric Hydraulic Four Post Triple Stacker Lift emerges as a premium vertical parking solution, distinguished by its robust eight-post composite structure that redefines stability and space efficiency for high-demand, high-end parking scenarios. Unlike conventional triple stacker lifts, its unique eight-post design integrates separated external and internal four-post lift units into a unified, reinforced system, delivering superior load-bearing stability even under heavy, continuous usage.

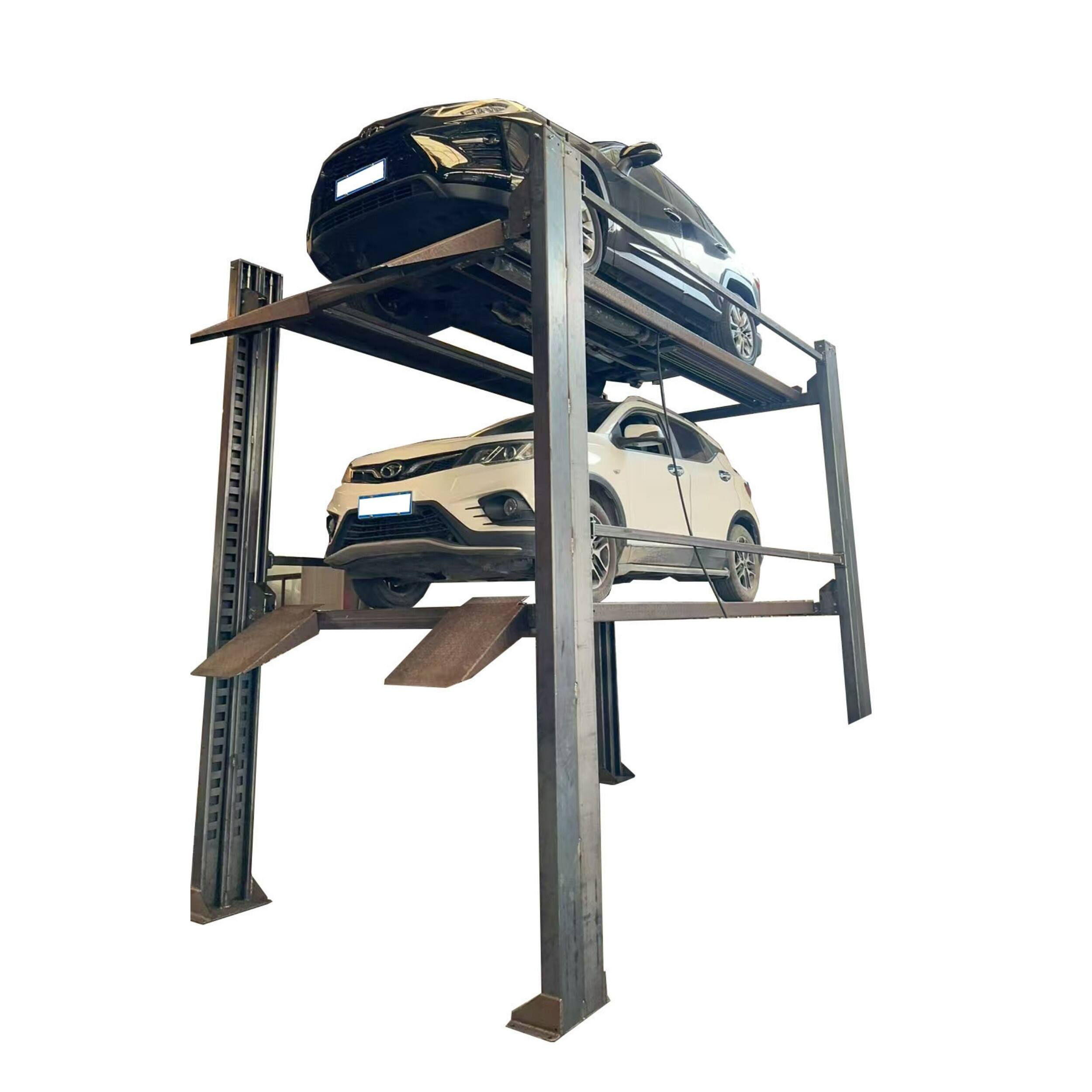

Boasting a 2700kg load capacity, this triple stacker lift enables vertical storage of three vehicles within a single ground footprint, achieving a dramatic increase in parking density without compromising on safety or vehicle protection—ideal for environments where space is scarce but quality and reliability are paramount. It offers dual lifting height options (1800mm and 1600mm) to flexibly adapt to diverse ceiling constraints of different buildings, while the 1900mm-wide loading plate is thoughtfully sized to accommodate most standard passenger cars, including luxury sedans and compact luxury SUVs.

Powered by a 2.2kw high-efficiency motor and compatible with both 220V civilian and 380V industrial power supplies, the lift delivers consistent, smooth, and safe operation in all working conditions. It marries the superior stability of an eight-post design with comprehensive, redundant safety features, making it the ideal choice for scenarios where heavy usage, maximum reliability, and space optimization are non-negotiable, such as high-end residential complexes and premium car facilities.

Parameter Specification:

Key Features:

Eight-Post Composite Structure: This lift innovatively integrates separated external and internal four-post lift units into a unified eight-post configuration, forming a stable and robust triple-stacking system. The eight-post design amplifies structural stability by distributing the load evenly across all posts, eliminating potential tilting or deformation even under full load and continuous usage, while maximizing vertical parking capacity to store three vehicles in one space—perfect for high-density, high-end parking environments.

Hydraulic-Rope Lifting Assembly: It adopts a high-performance hydraulic-driven cylinder coupled with a precision rope transmission system via sheaves, forming a reliable and efficient lifting mechanism. This assembly enables smooth, coordinated, and synchronized lifting movements of each stacking platform, avoiding jitter or inconsistency during operation, while ensuring reliable load-bearing performance under continuous use, effectively protecting luxury vehicles from damage.

Dual-Layer Safety Lock Protection: Each of the eight posts is fitted with two independent safety locks, creating a dual-layer, redundant safety protection system to eliminate operational hazards. One is an integrated one-piece adjustable safety lock ladder that can be flexibly adjusted according to different lifting heights to lock the platform firmly; the other is an automatic emergency lock that activates immediately in the event of steel wire rupture, stopping the platform instantly to prevent accidents and safeguard both vehicles and operators.

Foldable Low-Clearance Ramps: The lift is equipped with foldable access ramps that can be easily folded and stored when not in use, minimizing storage space occupation. These ramps are specifically engineered to suit sport cars and luxury vehicles with low ground clearance, effectively avoiding scratches on the vehicle chassis when driving onto the platform, thus broadening the lift's applicability across a wide range of high-end vehicle types.

Electromagnetic Latch Control System: It incorporates an automatic latch-locking mechanism within the safety ladders, paired with an electromagnetic release function controlled by a push button on the operation box. This system ensures intuitive, secure, and convenient operation for users—operators only need to press the button to release the lock, and the latch locks automatically when the platform reaches the designated height, avoiding manual operation errors and improving operational efficiency.

Individualized Operation Panels: Each lift unit in the triple-stacking system is equipped with a separate operation box, which is fixedly mounted on the front right post for easy access and operation. This individualized control design enables independent control of each stacking layer without mutual interference, allowing operators to lift or lower a single layer without affecting the other two, enhancing operational flexibility and convenience in high-demand scenarios.

Upper-Platform Wheel Securers: The upper two platforms of the lift are equipped with sturdy wheel stoppers that firmly anchor vehicle tires after parking. These securers prevent any lateral movement or displacement of the vehicle during the lifting, lowering, or long-term storage phases, ensuring the safety of parked luxury vehicles and avoiding collisions between vehicles in different stacking layers.

Industrial-Grade Anti-Corrosion Treatment: All steel components of the lift undergo professional sandblasting treatment first, which thoroughly removes rust, oil stains, and other surface impurities. They are then coated with anti-corrosion primer and a high-quality topcoat finish, forming a dense and durable protective layer. This industrial-grade treatment ensures exceptional durability and strong resistance to moisture, rust, and harsh environmental conditions, maintaining the lift's premium appearance and performance for long-term use.

Applications:

High-end residential complexes: Suitable for luxury residential communities with high parking demands and strict requirements for safety and aesthetics, it maximizes vertical space utilization while providing reliable protection for residents' high-end vehicles, enhancing the community's overall quality.

Commercial luxury properties: Applicable to luxury shopping malls, five-star hotels, and high-end office buildings, it makes full use of limited parking space to provide premium parking services for customers and clients, matching the property's high-end positioning.

Premium car dealerships and luxury vehicle storage facilities: Ideal for high-end car dealerships and professional luxury vehicle storage facilities, it is used for orderly storage and display of luxury new cars, test-drive vehicles, or classic cars, saving space while ensuring the safety of valuable vehicles.

Urban core parking garages: Suitable for urban core areas where land resources are scarce and parking demand is high, it helps to maximize the utilization of limited parking space, alleviating urban parking pressure while meeting the needs of high-end vehicle owners.

Luxury car rental and fleet management companies: Applicable to luxury car rental companies and high-end fleet management enterprises, it provides an orderly and safe storage solution for rental luxury vehicles or corporate fleets, facilitating vehicle scheduling and protecting the value of the vehicles.

Corporate headquarters and industrial parks with high parking density requirements: Suitable for corporate headquarters and industrial parks that require high parking density and pursue high-quality parking solutions, it ensures orderly parking, improves space utilization, and matches the enterprise's professional and high-end image.
