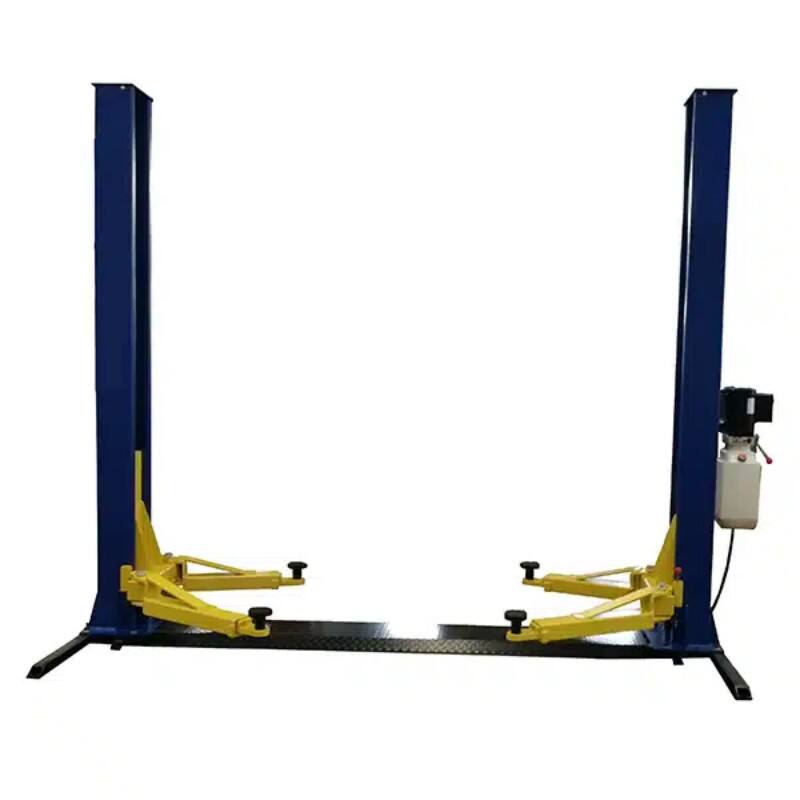

TP-4F Double-Cylinder Hydraulic Lift with Reinforced Base Plate

Two Post Car Lift Details:

The 1820mm (71 7/10") lifting height Base plate lift. This lift is specifically designed for low ceiling applications and features a manual two-side release for convenience. One of the key features of this lift is the optional triple stage arms combination, which allows it to accommodate a wide range of vehicles, from Smart cars to SUVs and light vans. Additionally, the reinforced base plate ensures stability even on bad concrete surfaces. The drop-in type lifting pads with a clearance height of less than 100mm (3 9/10") provide ease of use, while the automatic arm locks engage when the lift is raised and disengage when fully lowered. Rest assured, our product is CE certified and comes with a durable powder coating for long-lasting performance. The top and bottom pulley mount design also prevents the pulley from coming off.

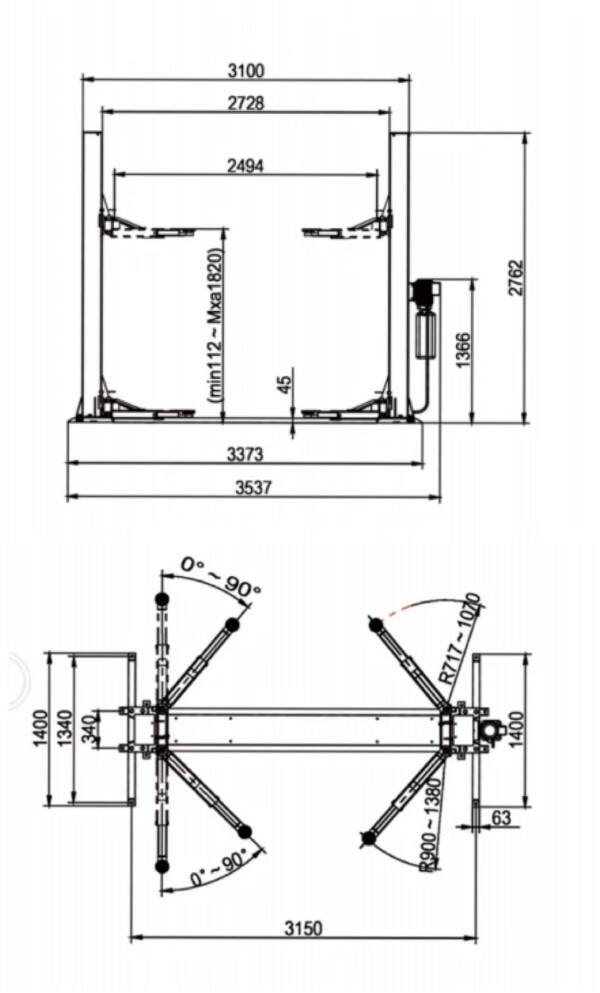

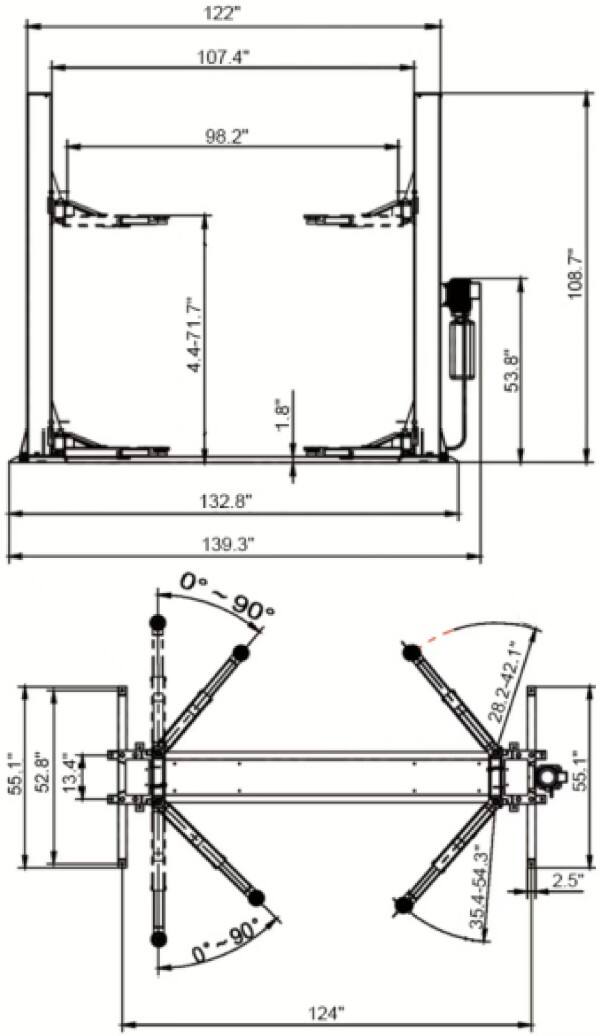

Two Post Car Lift Specifications:

Two Post Car Lift Application Scenarios:

The reinforced base plate is engineered to withstand imperfect concrete, offering a reliable foundation. With ultra-low clearance drop-in lifting pads at less than 95mm, it accommodates a broad spectrum of vehicles. Safety is paramount; our automatic arm locks activate during elevation and release when fully lowered, providing peace of mind.

The TP-4F's durability is enhanced by a superior powder coating and a meticulously designed pulley mount system that prevents dislodgement. We're confident this lift will elevate your operational efficiency and are here to answer any questions or provide additional insights.

For More Details Features：

1. 1820mm (71 7/10”) lifting height.
2. Baseplate lift for low ceiling application. Manual one side release

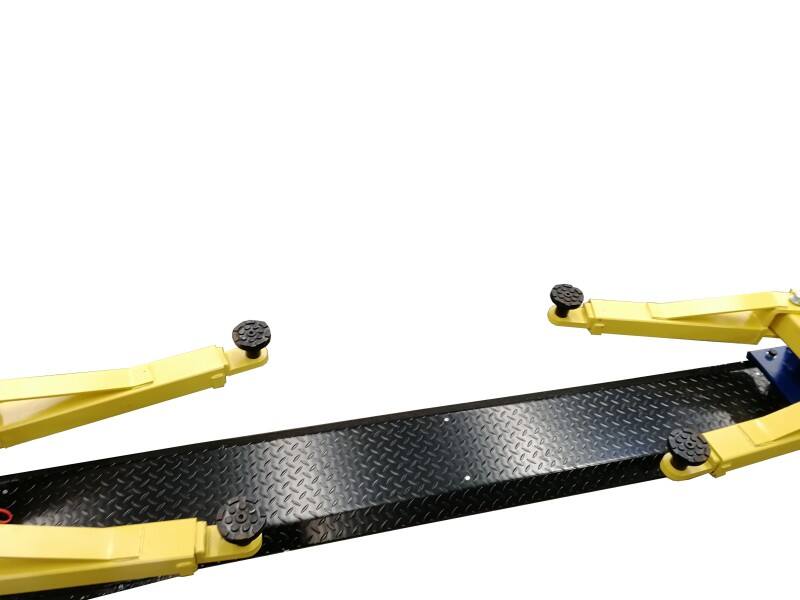

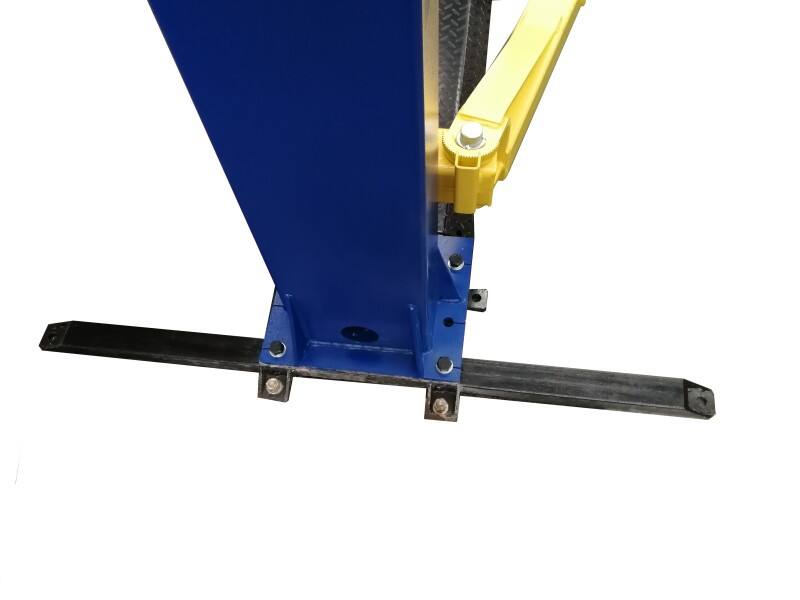

3. Reinforced base plate allow for bad concrete
4. Drop in type lifting pads with clearance height less than 95mm (3 9/10”)
5. The arm locks engage automatically when the lift is raised and disengage when lowered fully.
6. Durable powder coating.
7. Top and bottom pulley mount design avoid pulley from coming off

Relevant Evaluations：

The 1820mm (71 7/10") lifting height Base plate lift. This lift is specifically designed for low ceiling applications and features a manual two-side release for convenience. One of the key features of this lift is the optional triple stage arms combination, which allows it to accommodate a wide range of vehicles, from Smart cars to SUVs and light vans. Additionally, the reinforced base plate ensures stability even on bad concrete surfaces. The drop-in type lifting pads with a clearance height of less than 100mm (3 9/10") provide ease of use, while the automatic arm locks engage when the lift is raised and disengage when fully lowered. Rest assured, our product is CE certified and comes with a durable powder coating for long-lasting performance. The top and bottom pulley mount design also prevents the pulley from coming off.
