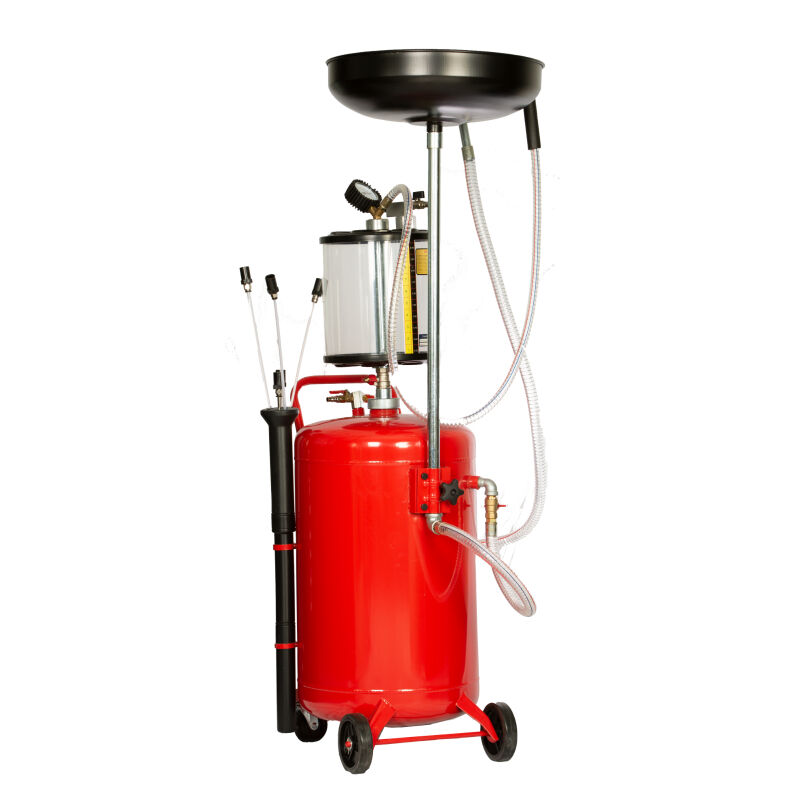

Professional Oil Drain TP3197

Oil Drain Details:

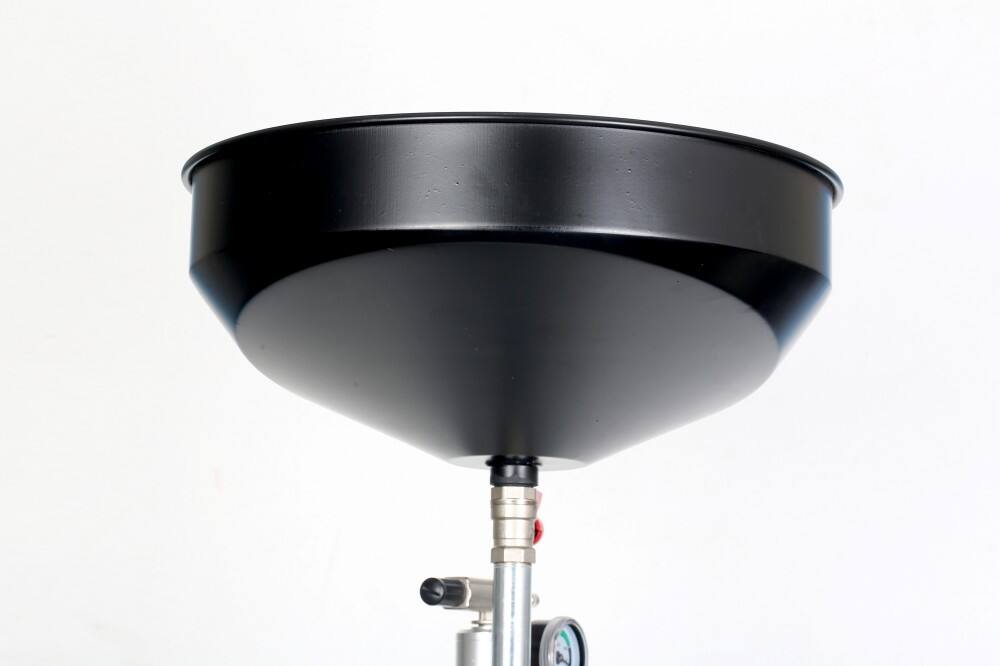

This premium equipment boasts a vacuum degree of 0-1 bar and a robust working pressure of 8-10 bar, ensuring fast and effective fluid extraction. With a generous tank capacity of 70L and a 10L basin and graduated cup, the FB3197 is equipped to handle high-volume jobs with ease.

Tailored for versatility, it efficiently manages lubricating oil with collection speeds of 0.8L/min (Φ3.5mm), 1.0L/min (Φ4.5mm), and 1.6L/min (Φ6.5mm), catering to various service requirements. The unit's weight of 21kgs is optimized for stability, while its operational oil temperature range of 40-60℃ ensures peak performance under diverse working conditions.

Vacuum degree： 0-1 bar
Working perssure： 8-10 bar
Tank capacity： 70L
Basin capacity： 10L

Oil Drain Specifications:

Oil Drain Application Scenarios:

Our product stands out with its robust vacuum degree ranging from 0 to 1 bar and a consistent working pressure between 8 to 10 bar. The substantial tank capacity of 70L, complemented by a 10L basin and graduated cup, ensures a seamless oil change process.

The FB3197 is adept at handling lubricating oil, with varying collecting speeds to suit your needs: 0.8L/min (Φ3.5mm), 1.0L/min (Φ4.5mm), and 1.6L/min (Φ6.5mm). Despite its power, it maintains a manageable weight of 21kgs and is designed to function within the optimal oil temperature range of 40-60℃, guaranteeing reliability and durability.

For More Details Features：

Vacuum degree： 0-1 bar
Working perssure： 8-10 bar
Tank capacity： 70L
Basin capacity： 10L
Medium： lubricating oil
Φ3.5mm collecting speed： 0.8L/min
Φ4.5mm collecting speed： 1.0L/min
Φ6.5mm collecting speed： 1.6L/min
Weight ： 21kgs
Working oil temperature： 40-60℃
