FB-886

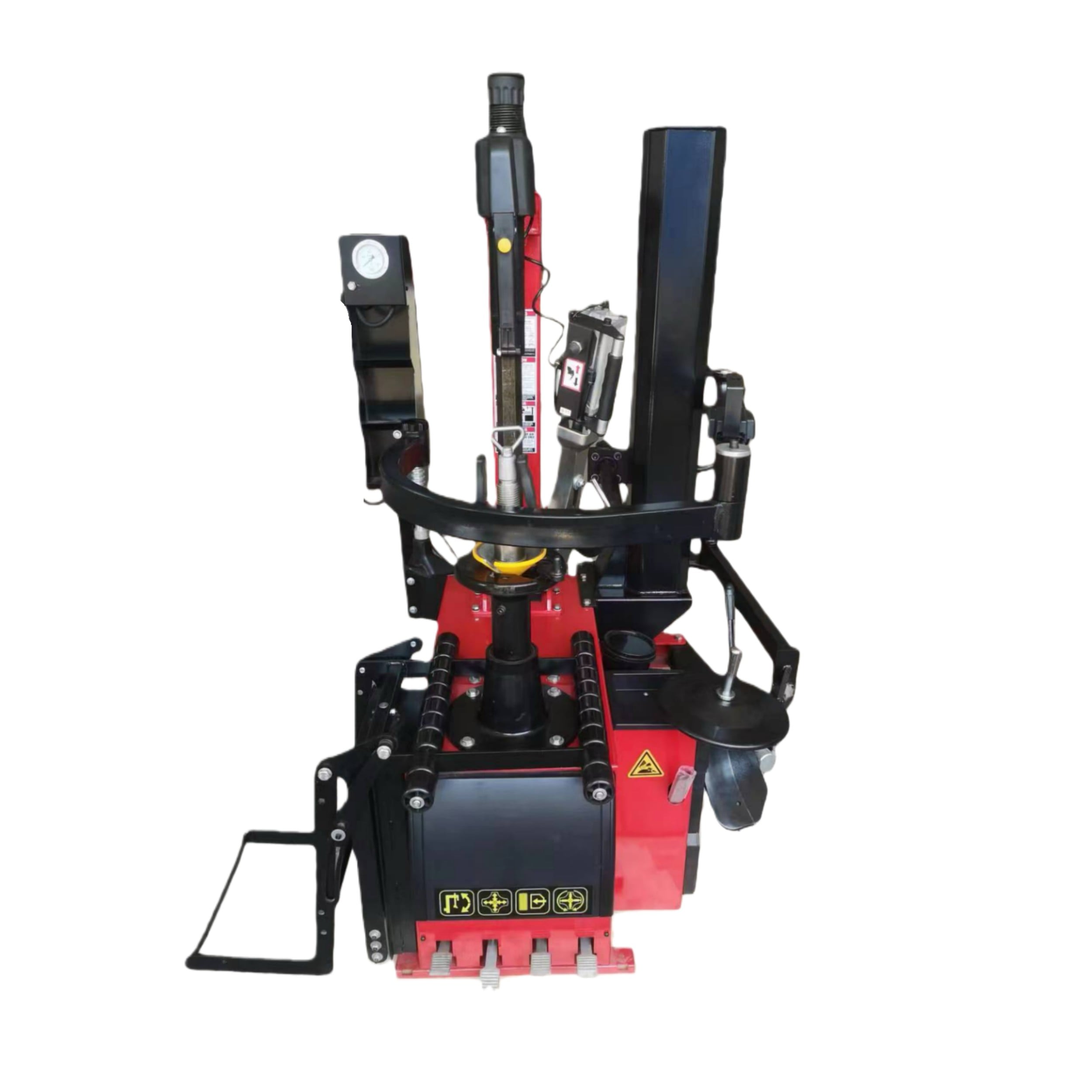

The FB-886 is a multifunctional 14"–30" main-shaft tilt-back tyre changer designed for heavy-duty and versatile workshop use. It accommodates wheels up to 1140mm in diameter and 400mm in width, with outside clamping from 14" to 30" – ideal for larger rims found on SUVs, vans, and light trucks. Powered by a 1.1/0.75kW motor and compatible with 110V/220V/380V supplies, it operates on 8–10bar air pressure, delivering a powerful 2500kg bead breaker force while maintaining a low noise level below 70dB. The machine features a durable steel-iron bead breaker cylinder, an aluminium gearbox for reduced weight, and a pneumatically operated tilting column. Its split or combined packing options (1100×980×860mm plus auxiliary crate, or a single 1760mm-high crate) offer flexible logistics for global shipment.

Overview
Recommended Products

Key Features:

The FB-886 incorporates a pneumatically operated tilting column that allows smooth, precise arm positioning, paired with simultaneous pneumatic horizontal and vertical arm lockers for rock-solid stability during operation. Its complete bead breaker cylinder is constructed from steel iron for exceptional durability, while the Ø80 clamping cylinder integrates the seal ring and piston into a single unit, minimising internal friction for responsive, low-resistance clamping. The lightweight aluminium gearbox reduces overall machine weight without compromising strength. Double help arms provide superior support, making light work of stiff, wide, and low-profile tyres. The pneumatic bead breaker delivers controlled, powerful detachment, and with noise below 70dB, it ensures a quieter, more comfortable working environment. These features collectively enhance productivity, reduce operator fatigue, and guarantee long-term reliability.

Applications:

The FB-886 is perfectly suited for automotive repair centres, tyre retail outlets, and fleet maintenance depots that regularly service SUVs, vans, light trucks, and modern vehicles with large-diameter or low-profile tyres. Its wide clamping range (14"–30") covers diverse rim sizes, from standard passenger cars to heavy-duty commercial light trucks. The double help arms and tilt-back design significantly reduce operator strain, accelerating routine puncture repairs, seasonal tyre swaps, and high-volume changeovers. The machine excels at handling stiff, wide tyres common in contemporary vehicles, ensuring fast turnaround times. Its robust construction and powerful bead breaker guarantee consistent, safe performance under continuous heavy use, making the FB-886 a reliable, long-term investment for any professional workshop prioritising efficiency, safety, and versatility.
