FB-596

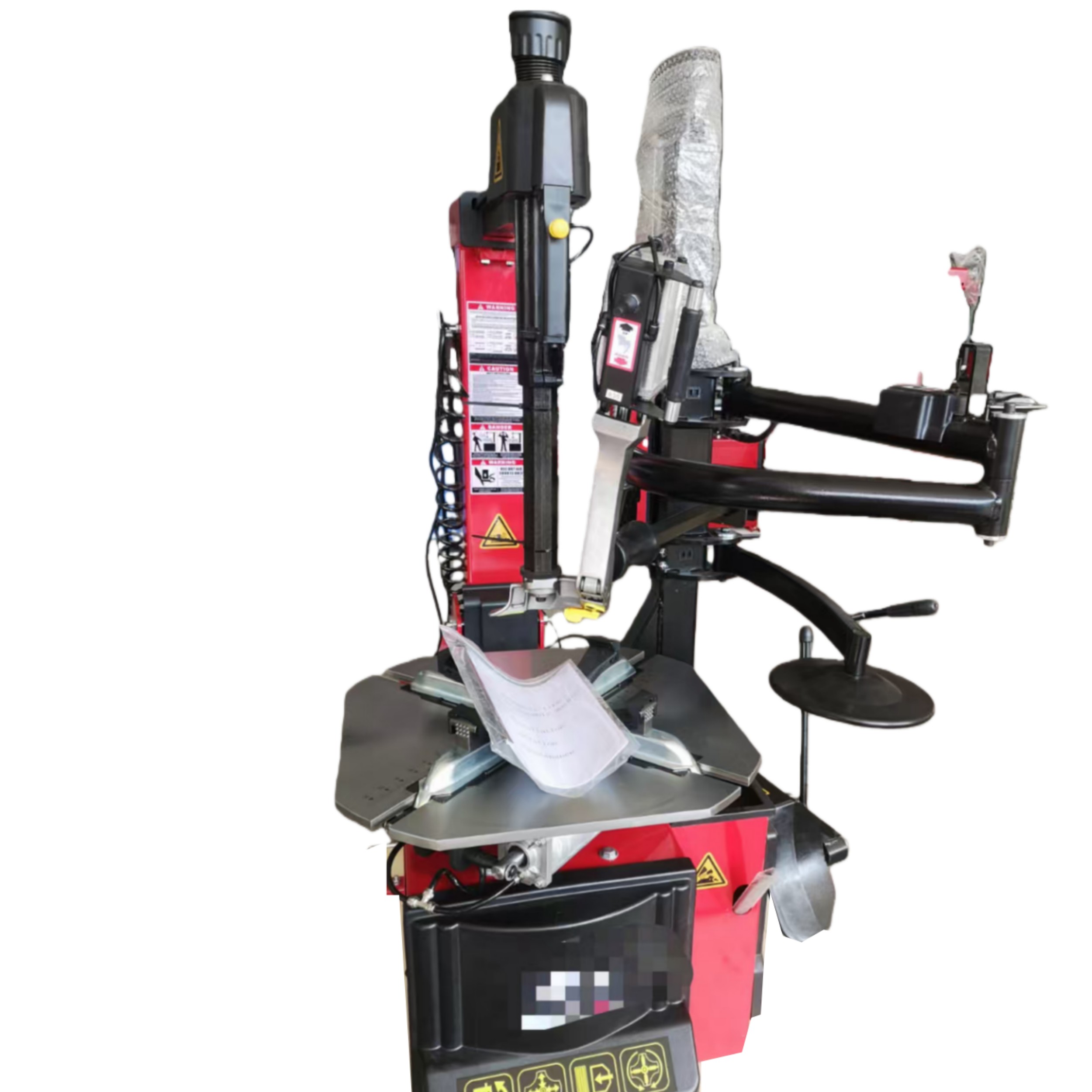

The FB-596 is a 24-inch tyre changer featuring a pneumatically operated tilting column and a right-side help arm, designed for effortless handling of passenger and light-truck tyres. It accommodates wheels up to 1040mm in diameter and 350mm in width, with outside clamping from 10" to 22" and inside from 12" to 24". Powered by a 1.1/0.75kW motor and compatible with 110V/220V/380V supplies, it operates on 8–10bar air, delivering 2500kg of bead breaker force while maintaining noise below 70dB. An optional quick inflation system from a rear air tank enhances functionality. The machine’s robust steel-iron cylinder and aluminium gearbox ensure durability, while its versatile packing options (split or combined) suit varied workshop layouts.

Overview
Recommended Products

Key Features:

The FB-596 integrates a pneumatically operated tilting column that allows smooth, precise arm positioning, combined with simultaneous pneumatic horizontal and vertical arm lockers for rock-solid stability during operation. Its complete steel-iron bead breaker cylinder guarantees exceptional wear resistance, while the Ø80 clamping cylinder with integrated seal ring and piston minimises internal friction, delivering responsive clamping action. The lightweight aluminium gearbox reduces overall weight without sacrificing strength. A dedicated right-side help arm makes light work of stiff, wide, and low-profile tyres, and the pneumatic bead breaker ensures safe, powerful detachment. With an optional rear-tank quick inflation system, the FB-596 boosts efficiency and convenience in busy workshop environments.

Applications:

The FB-596 is ideal for automotive service centres, tyre retail outlets, and fleet maintenance depots handling passenger cars, SUVs, light trucks, and modern low-profile tyres. Its right help arm and tilting column simplify the mounting and demounting of wide, stiff tyres, reducing operator strain and accelerating routine repairs, puncture fixes, and seasonal changeovers. The machine’s wide clamping range (10"–24") covers diverse rim sizes, making it a versatile asset for high-volume shops. The optional quick inflation system further streamlines workflow, particularly for tubeless tyre seating. Compact yet powerful, the FB-596 delivers consistent, professional results, making it a reliable investment for workshops prioritising productivity, safety, and operator comfort.
