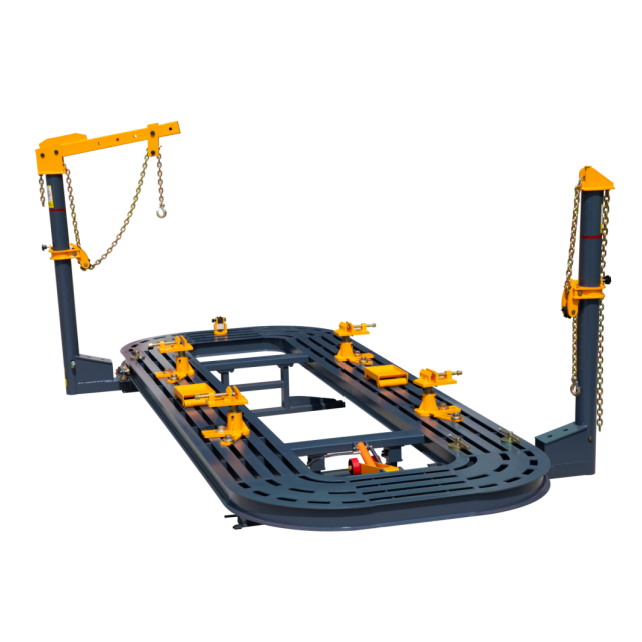

Auto Car Body Straightening Alignment Machine/car Collision Repair System/car Frame Bench YQS-1900
- Overview
- Recommended Products
Details
1. Tiltable platfrom allows easy drive on and off of any vehicle;
2. Thickness manganese steel platform,the whole platform is made up of large CNC cutting equipment processing,highly flatness,strong strength,no the blind area of working stretch;
3. Adopting import highly quality hydraulic pump,powerful,low failure rate(Electric box Optional)
4. Single tilt system with two post
5. Platform with I beams at height of 14cm
6. Pneumatic operation
Specifications
| Model | YQS-1900 |
| Deck Length: | 5200mm |
| Deck Width: | 2100mm |
| Deck Height: | 520mm |
| Tower Pulling Force: | 10T/98KN |
| Hydraulic Pressure: | 70Mpa (10000 psi) |
| Net./Gross Weight | 2015/2050KGS |
| Packing size | 5600*22200*150mm, 2250*1450*500mm |
| loading | 20GP 6 sets/40GP 12 sets |
