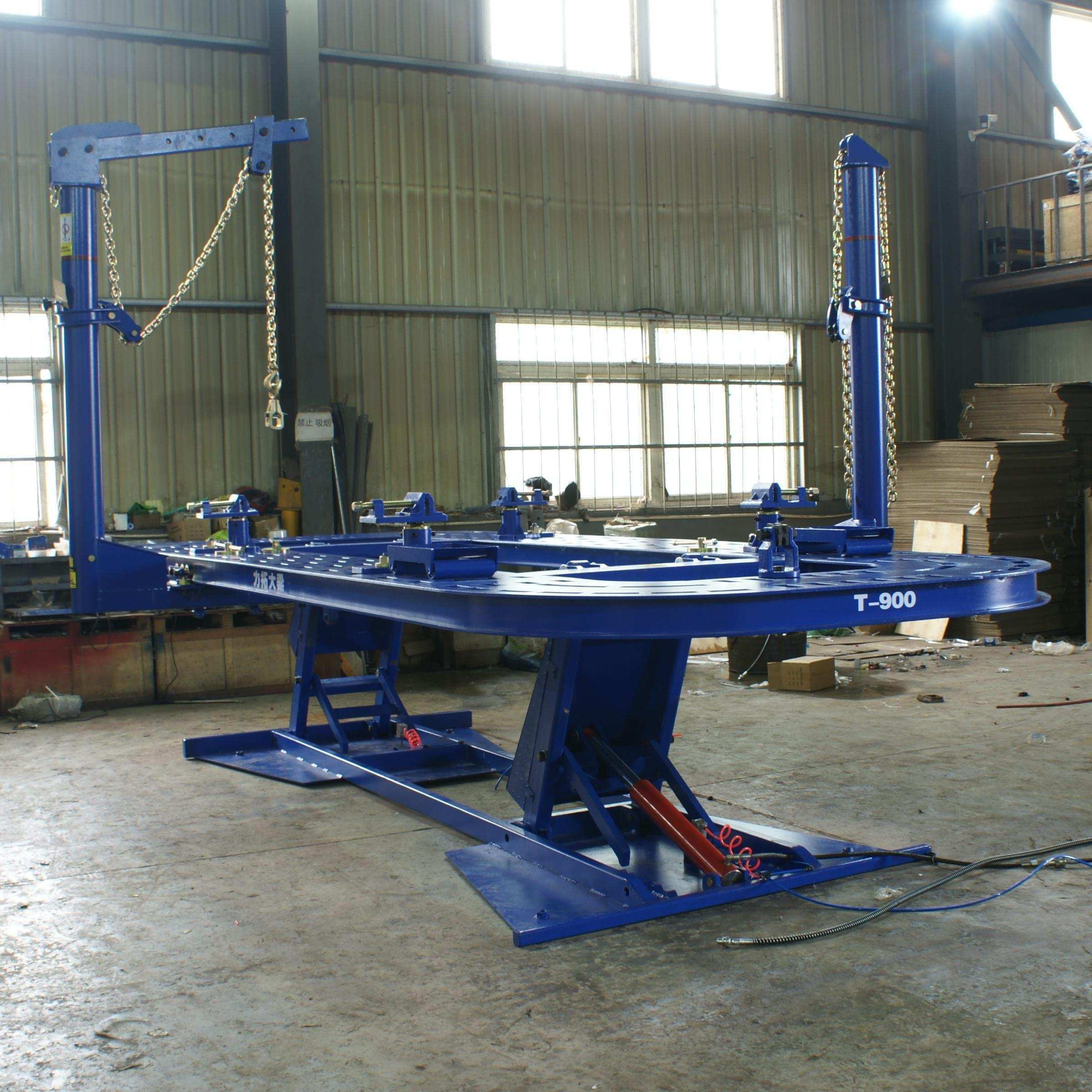

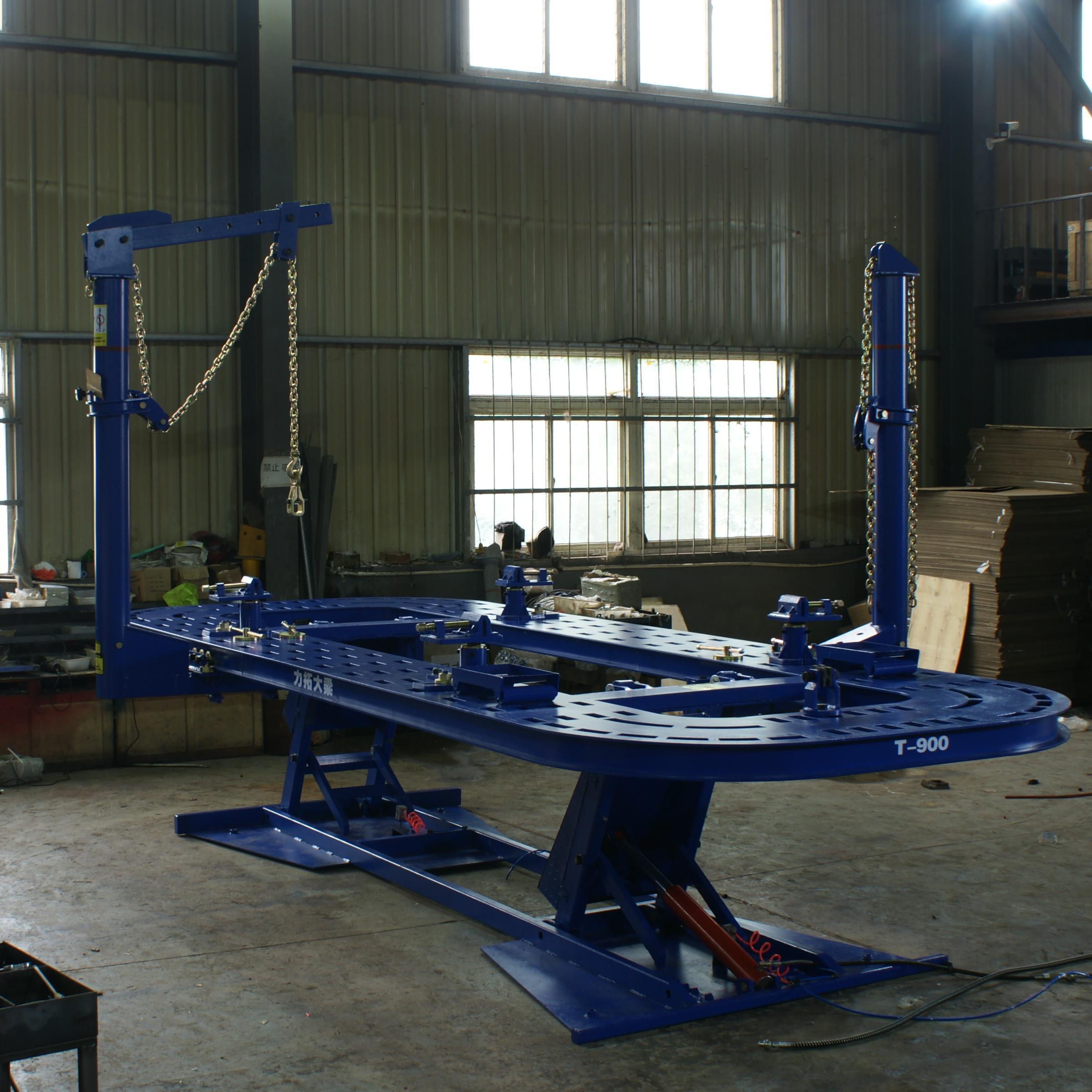

Auto Car Body Straightening Alignment Machine/car Collision Repair System/car Frame Bench YQS-4000
- Overview
- Recommended Products
Details
1. Tiltable platfrom allows easy drive on and off of any vehicle;
2. Thickness manganese steel platform,the whole platform is made up of large CNC cutting equipment processing,highly flatness,strong strength,no the blind area of working stretch;

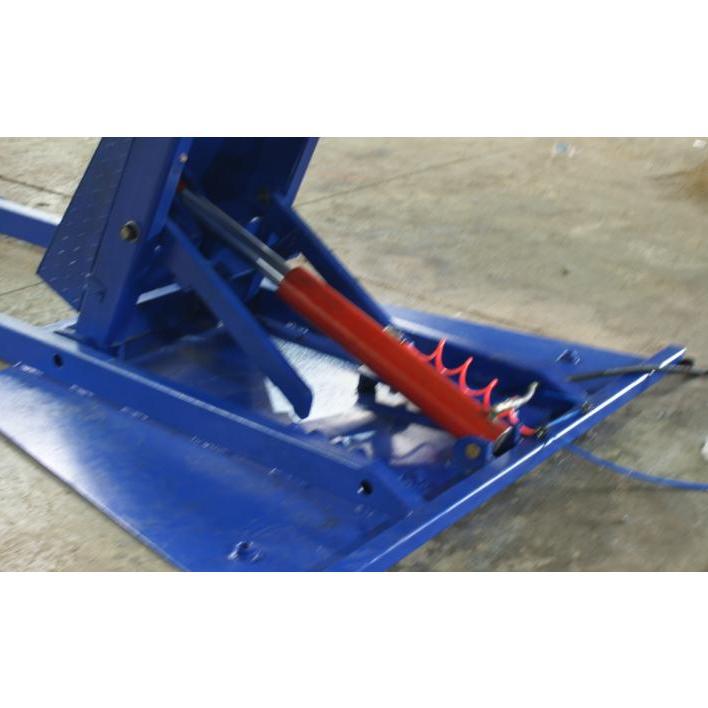

3. Adopting import highly quality hydraulic pump,powerful,low failure rate(Electric box Optional)
4. Single tilt system with two posts
5. Platform with steel plate at height of 12cm
6. Electric and remote control
7. Automatic lifting between 350-1050mm/13.78-41.33")
8. Equipped with 2 pcs of long approach ramp
Specifications
| Model | YQS-4000 |
| Deck Length: | 5600mm |
| Deck Width: | 2200mm |
| Deck Height: | 350-1050mm/ |
| Tower Pulling Force: | 10T/98KN |
| Hydraulic Pressure: | 70Mpa (10000 psi) |
| Net./Gross Weight | 2715/2750KGS |
| Packing size | 5600*2200*350mm, 2200*1450*500mm |
| loading | 20GP 3 sets/40GP 7 sets |
