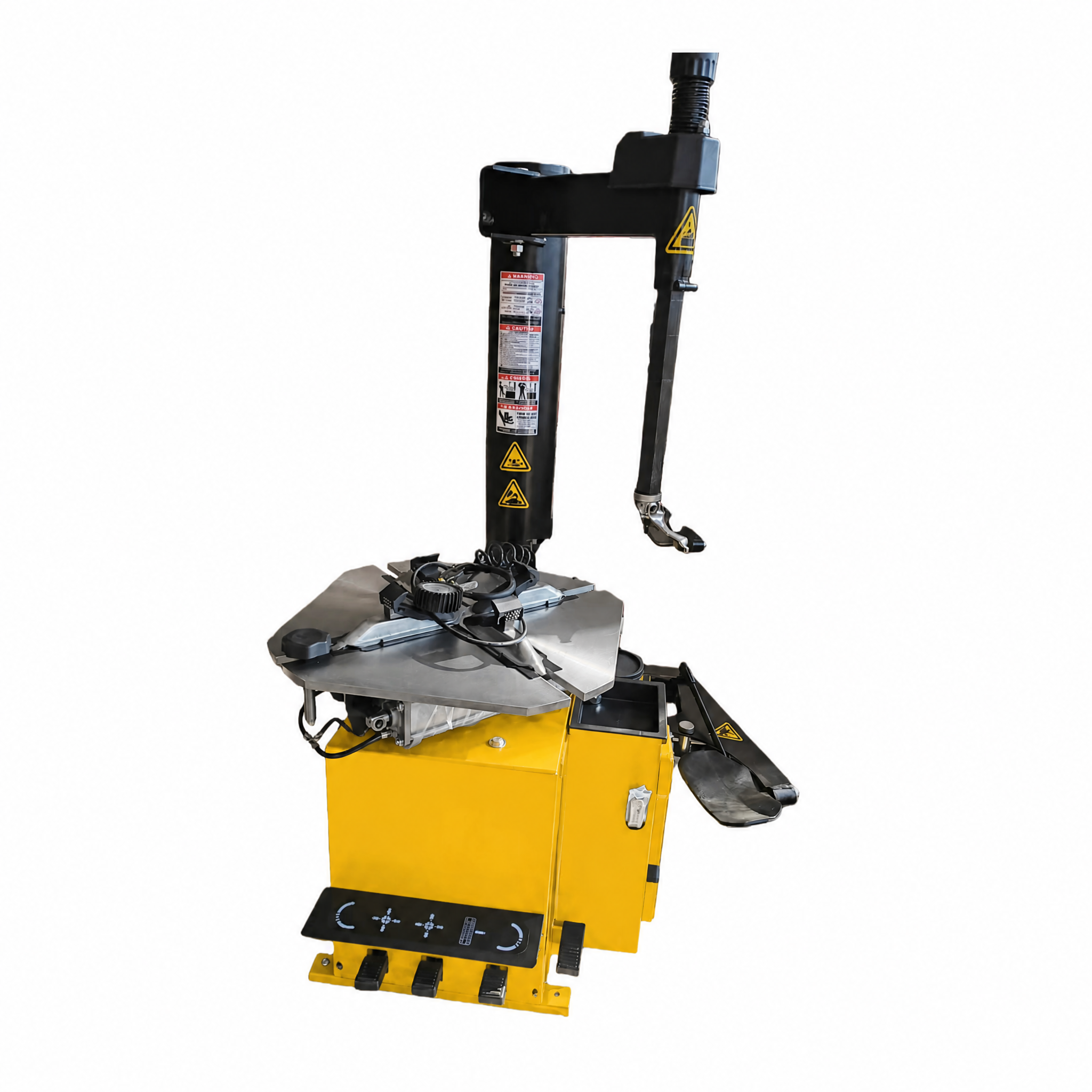

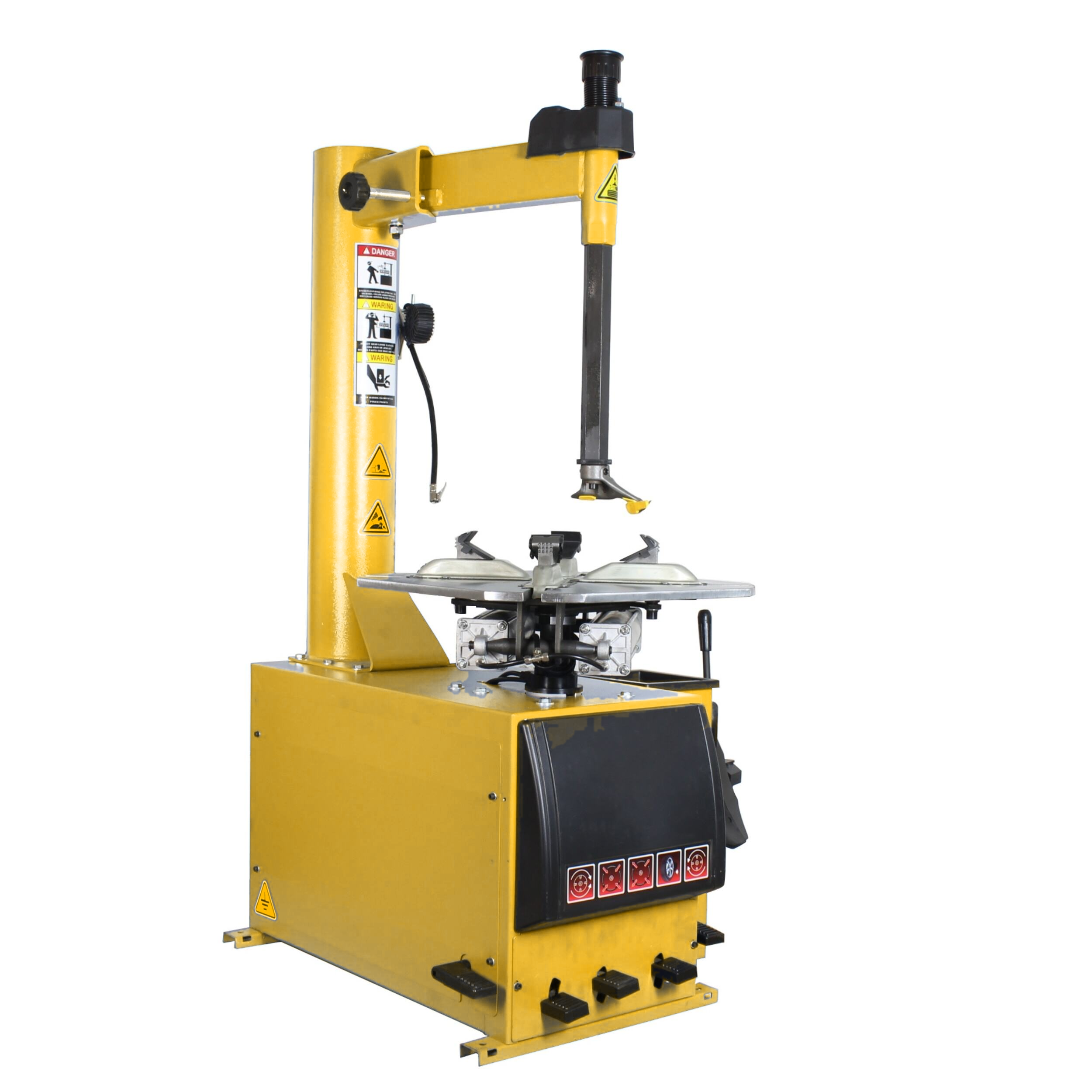

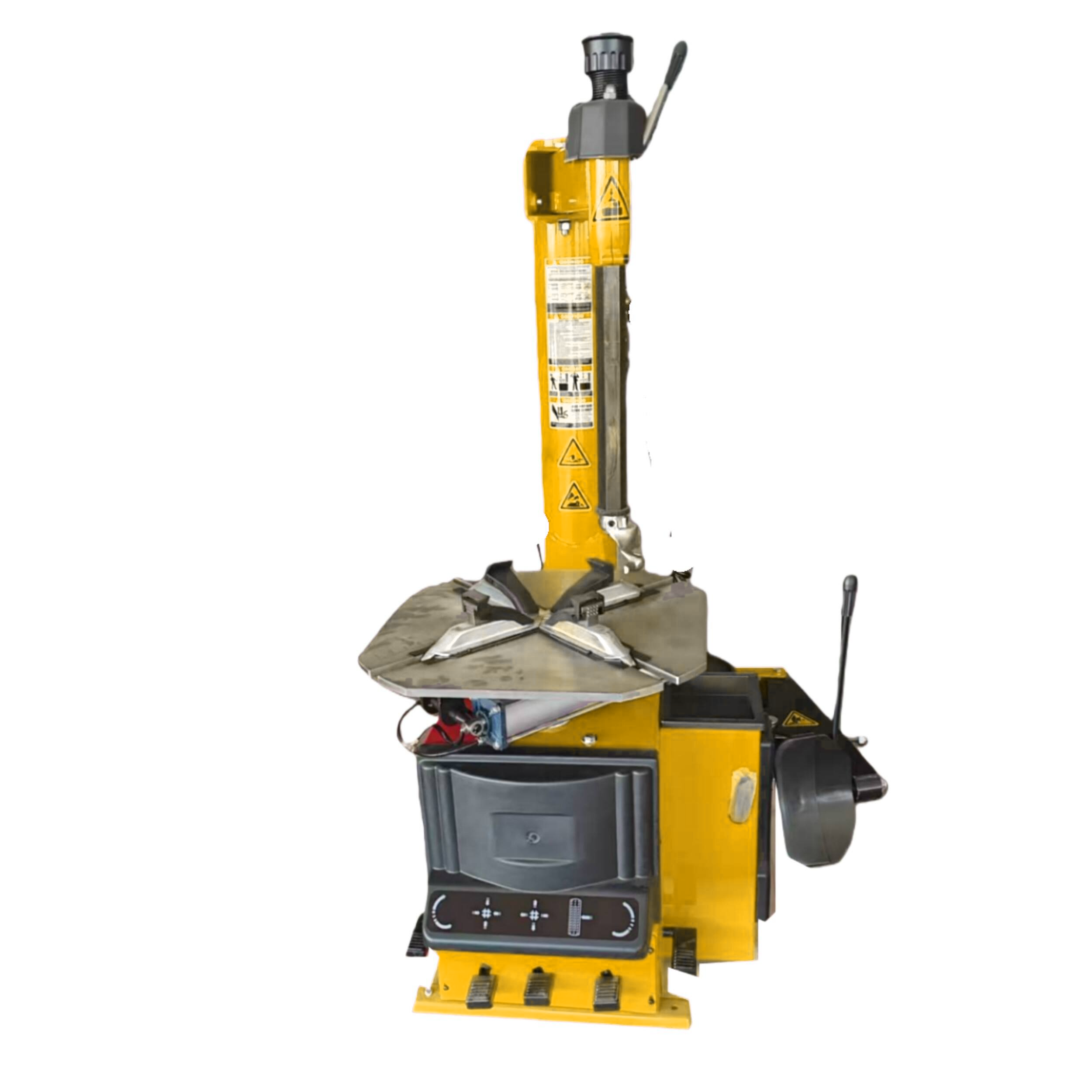

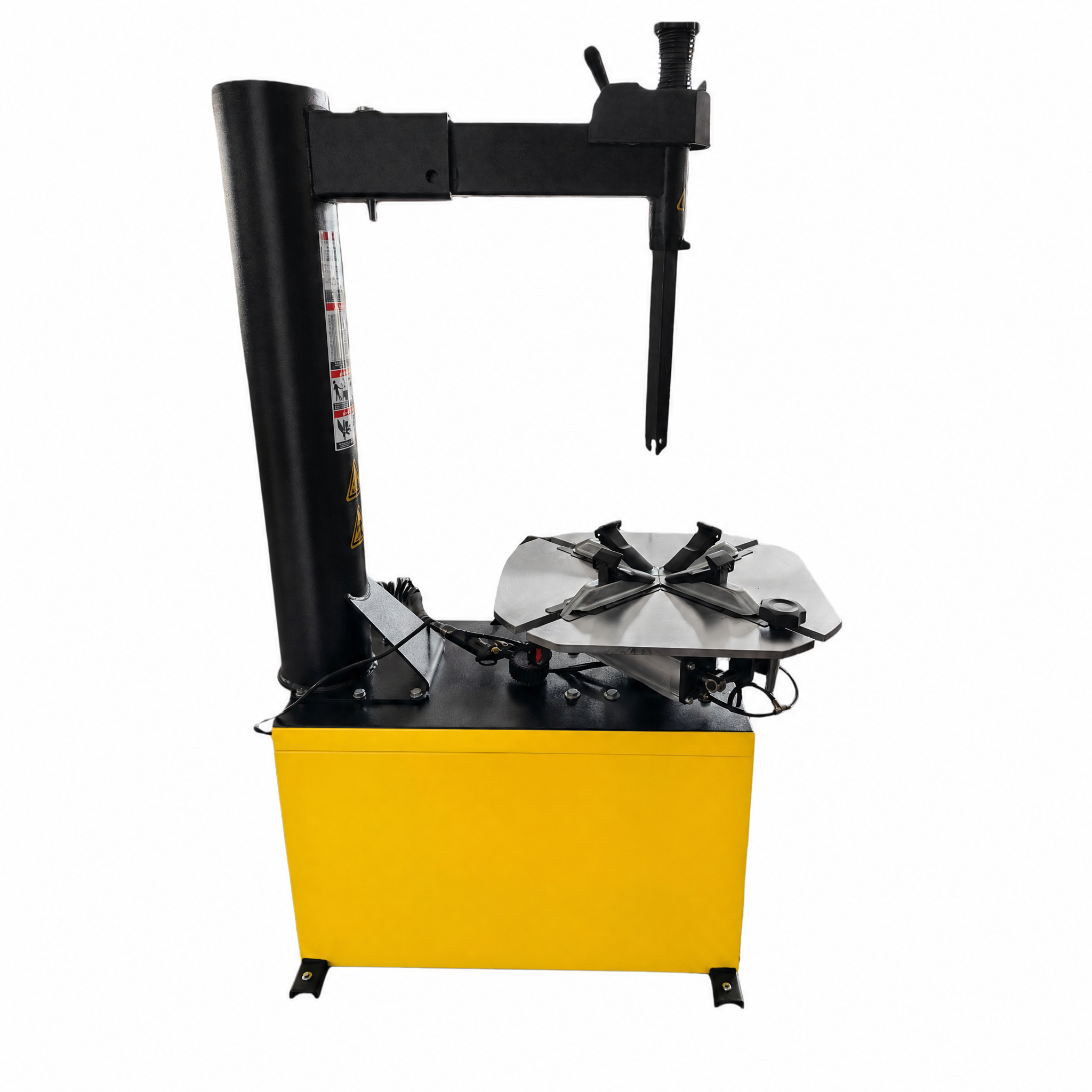

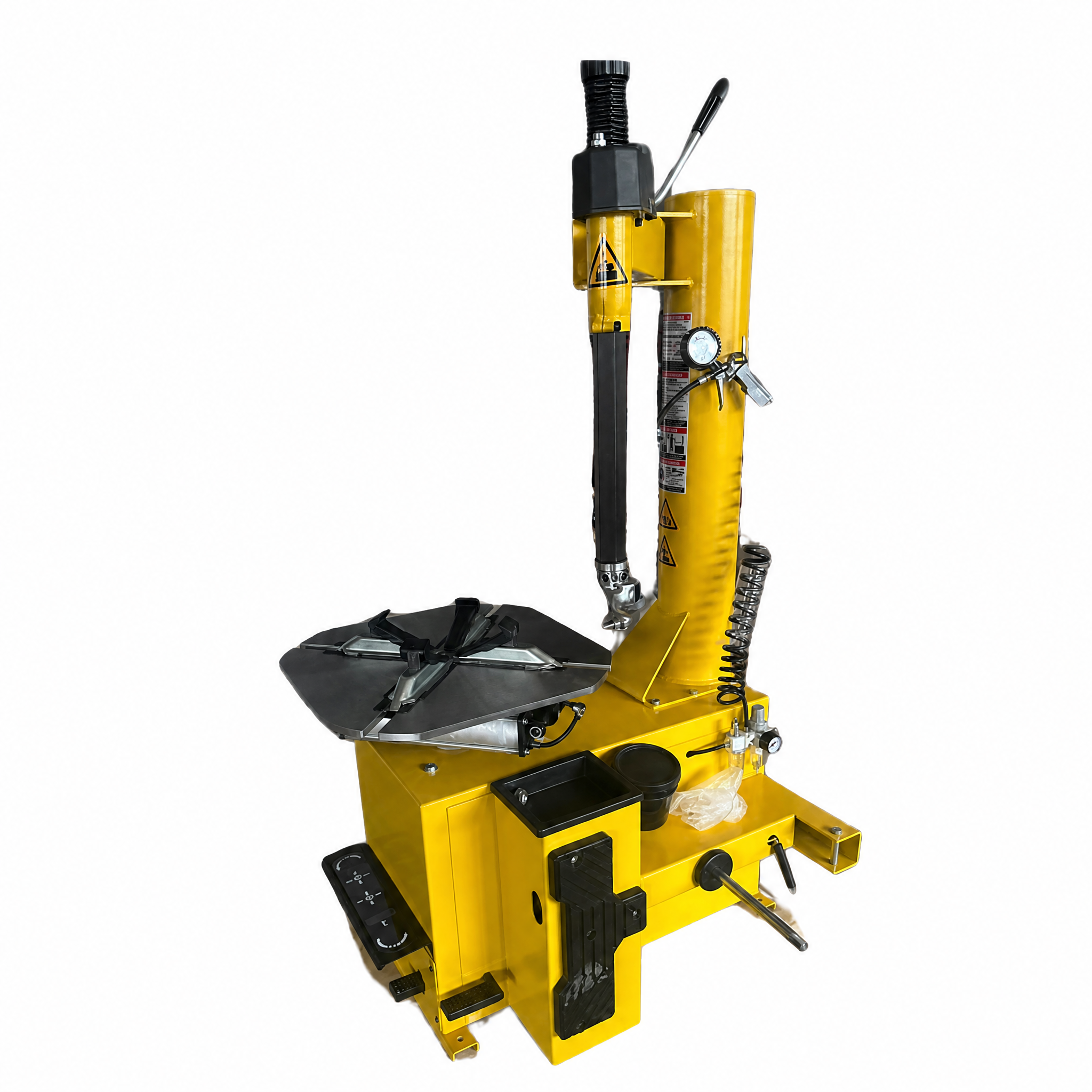

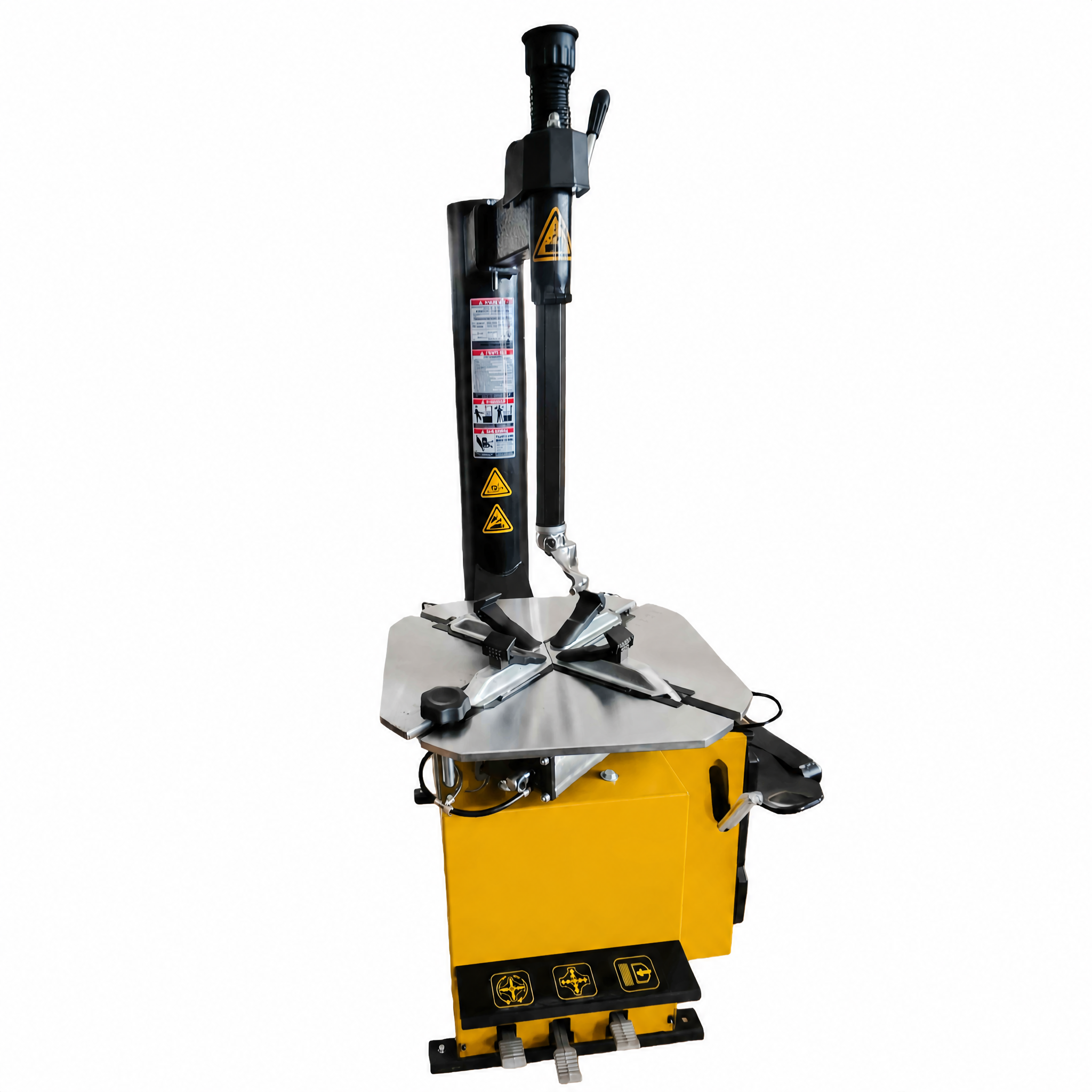

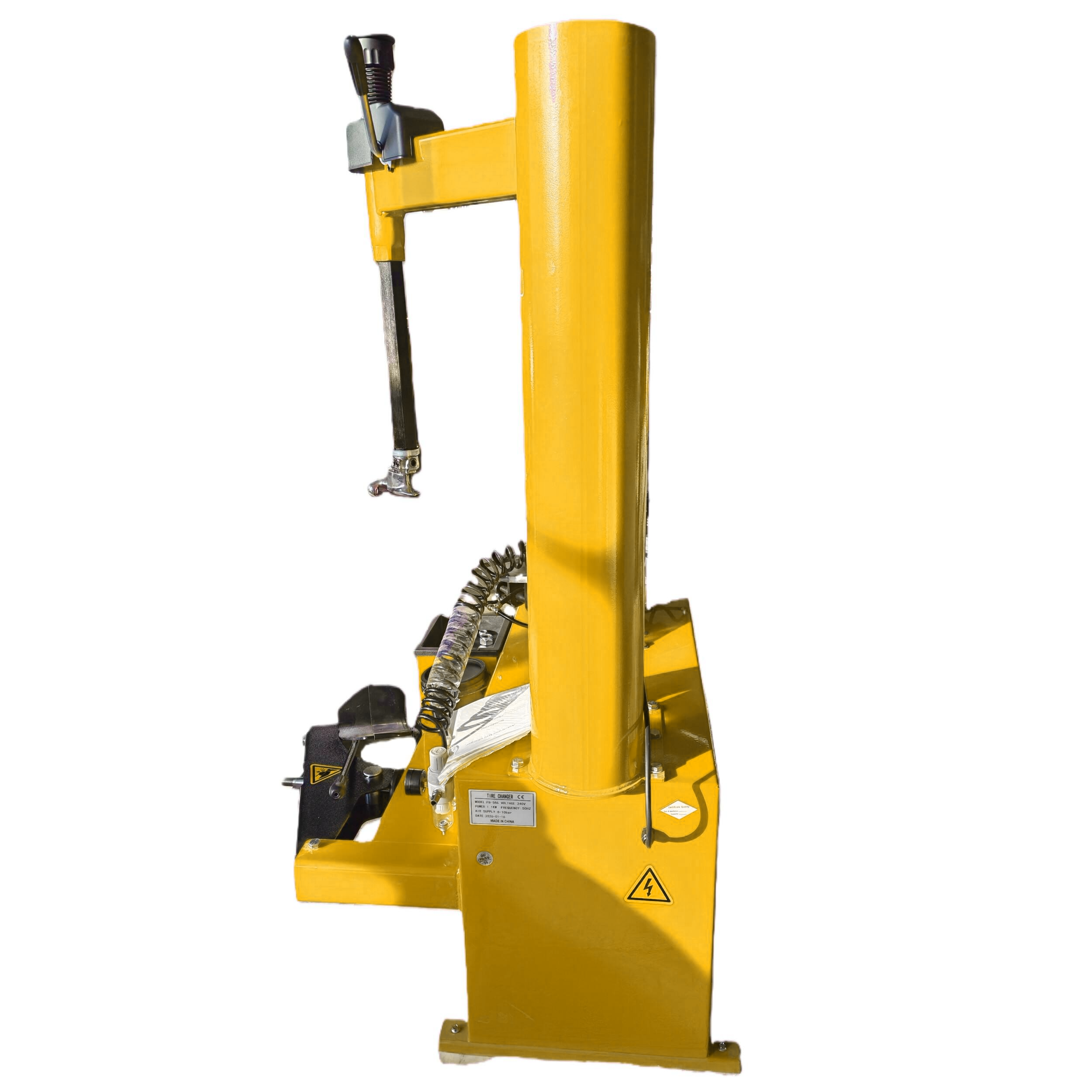

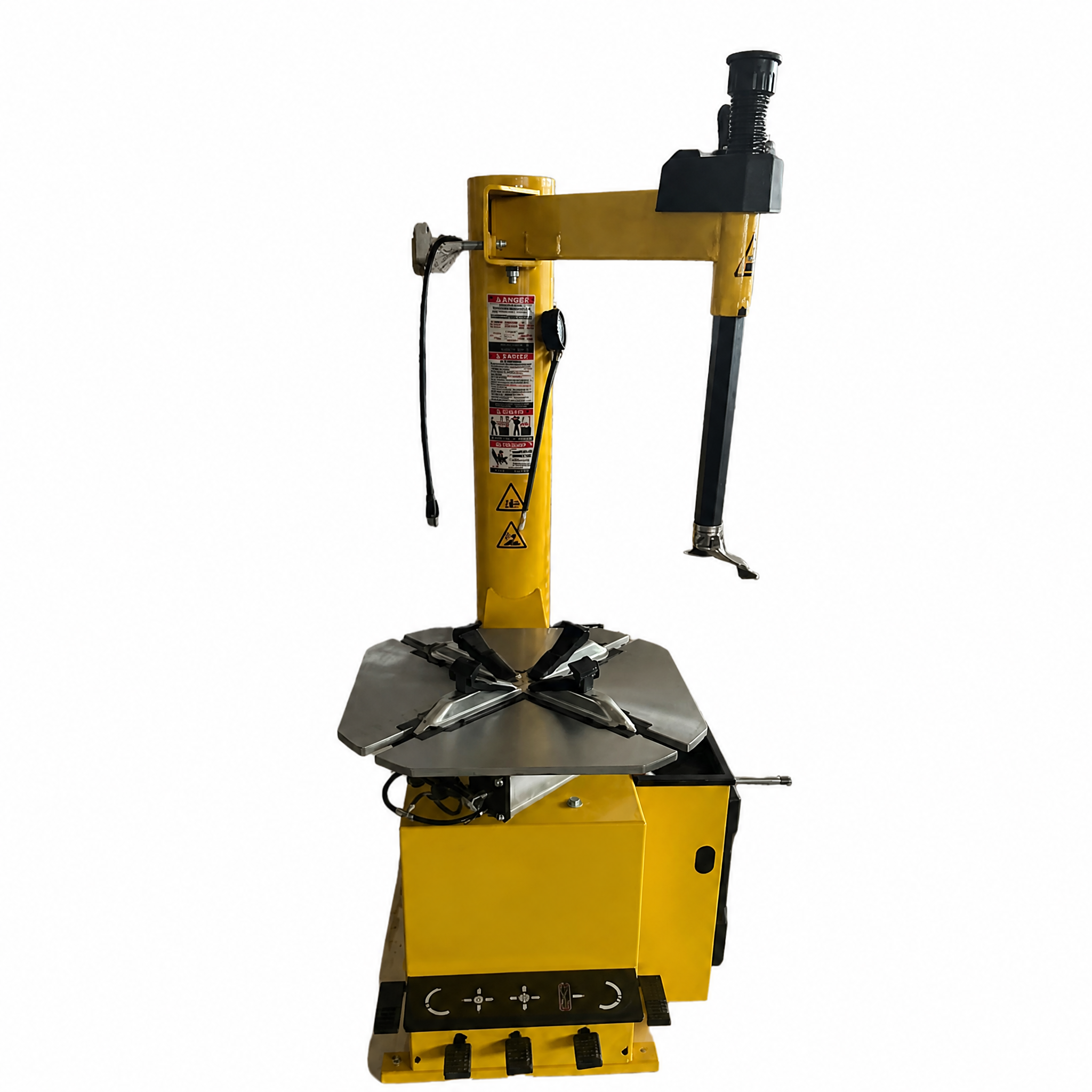

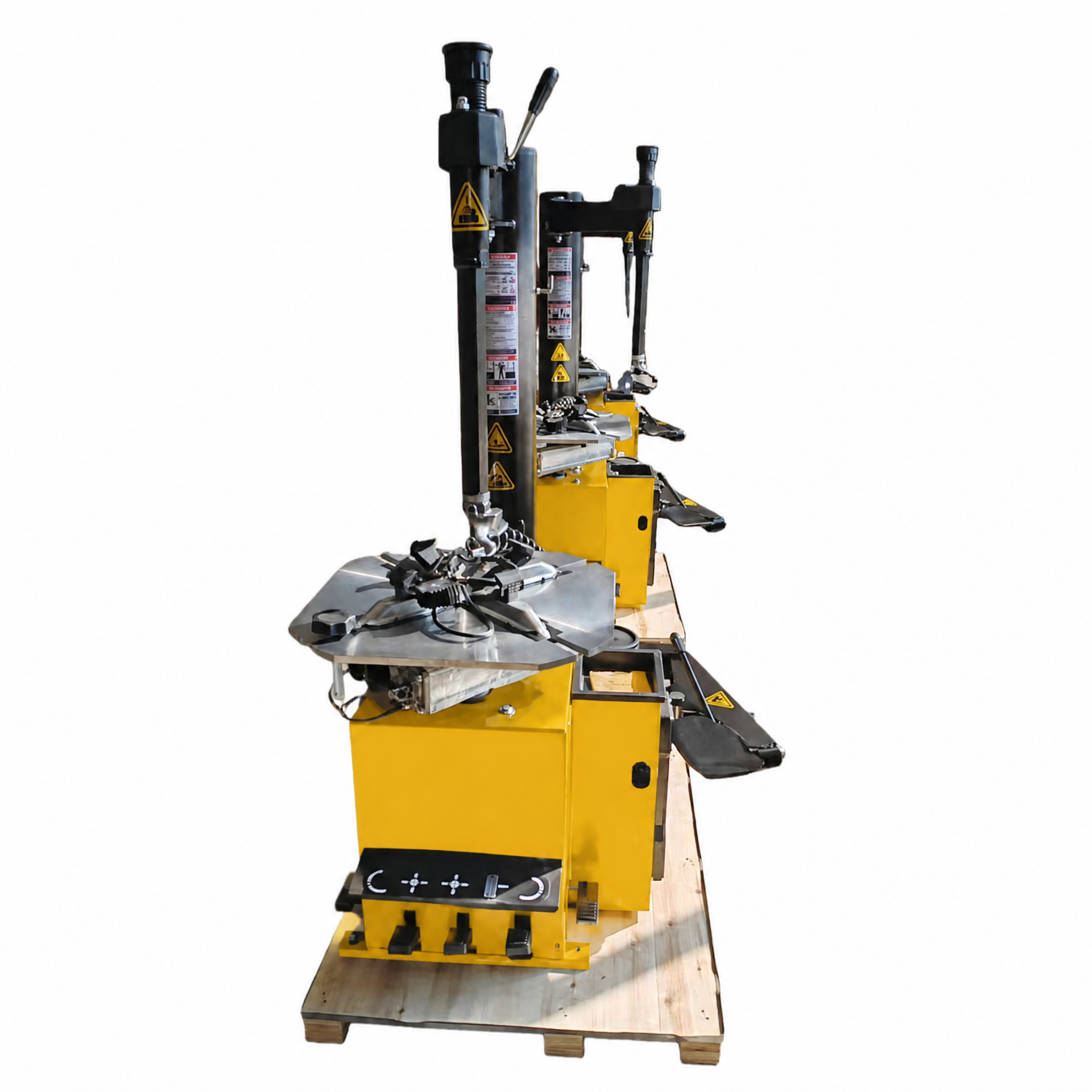

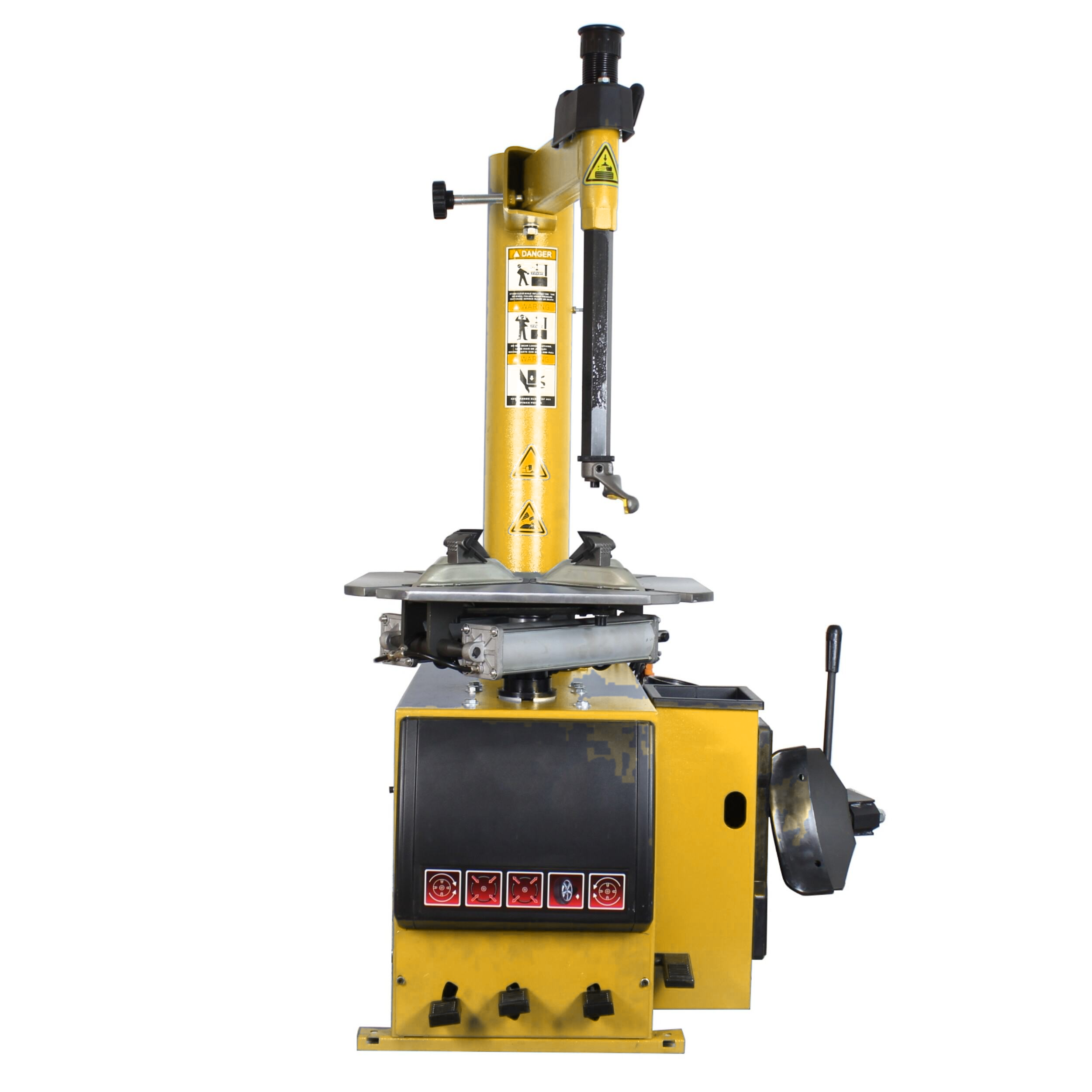

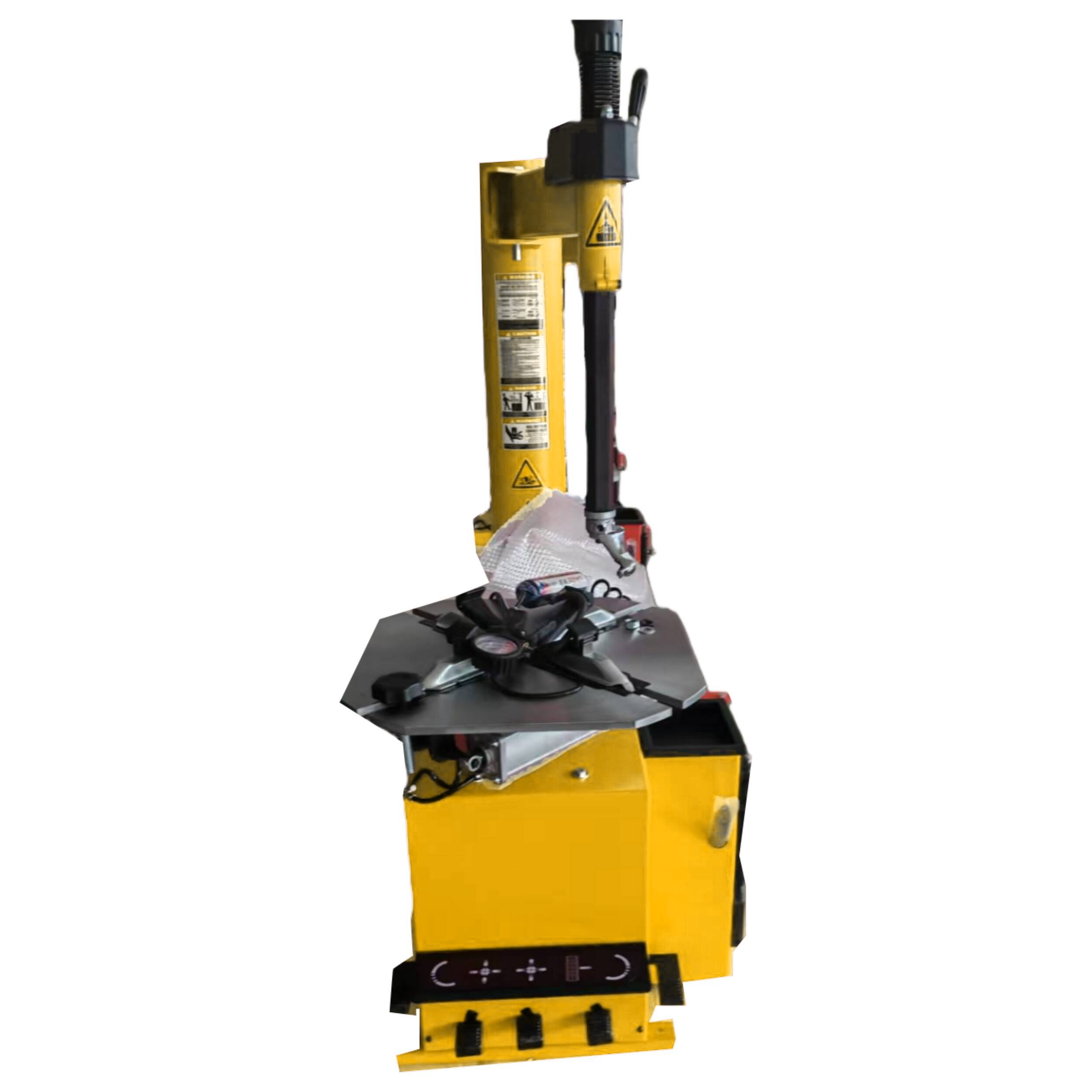

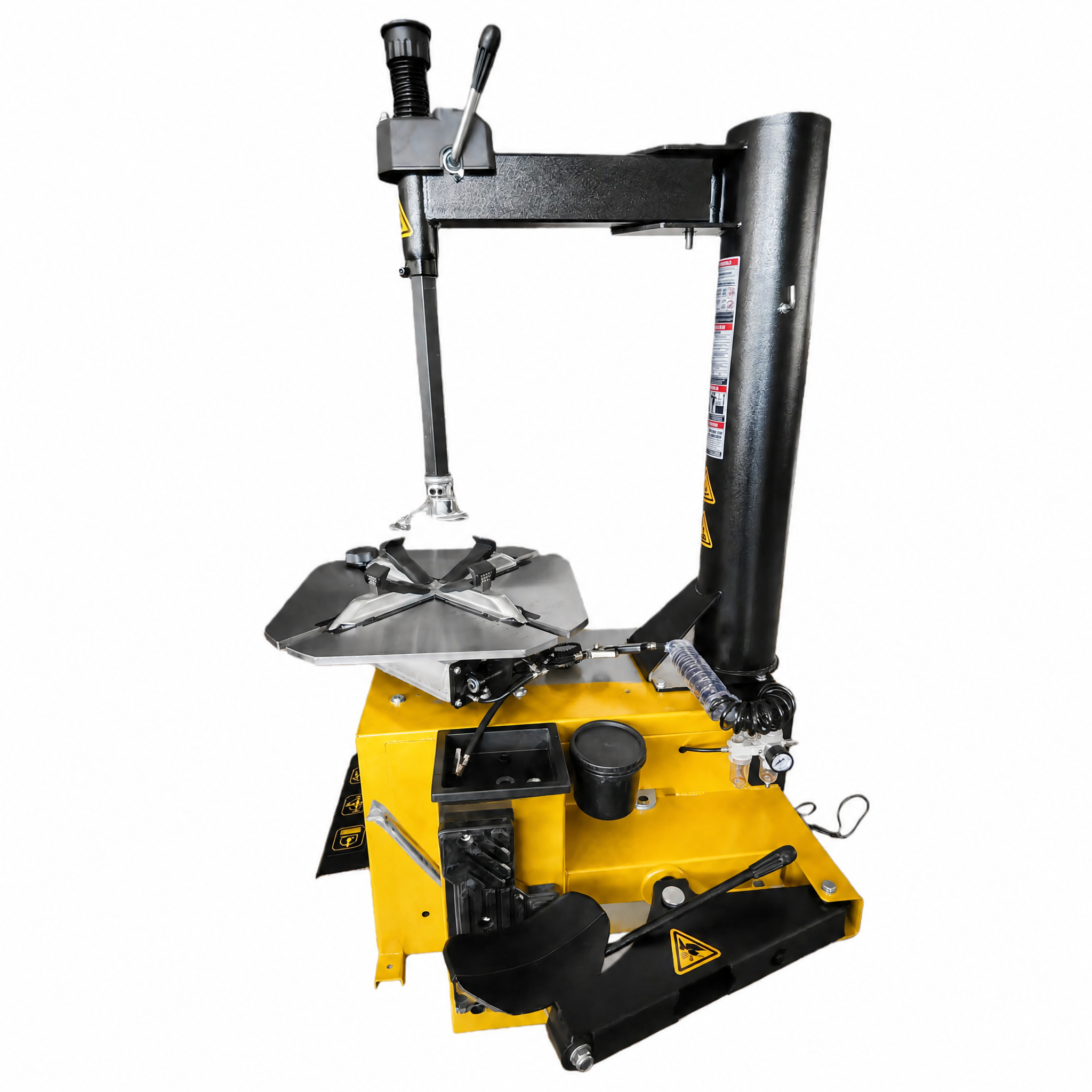

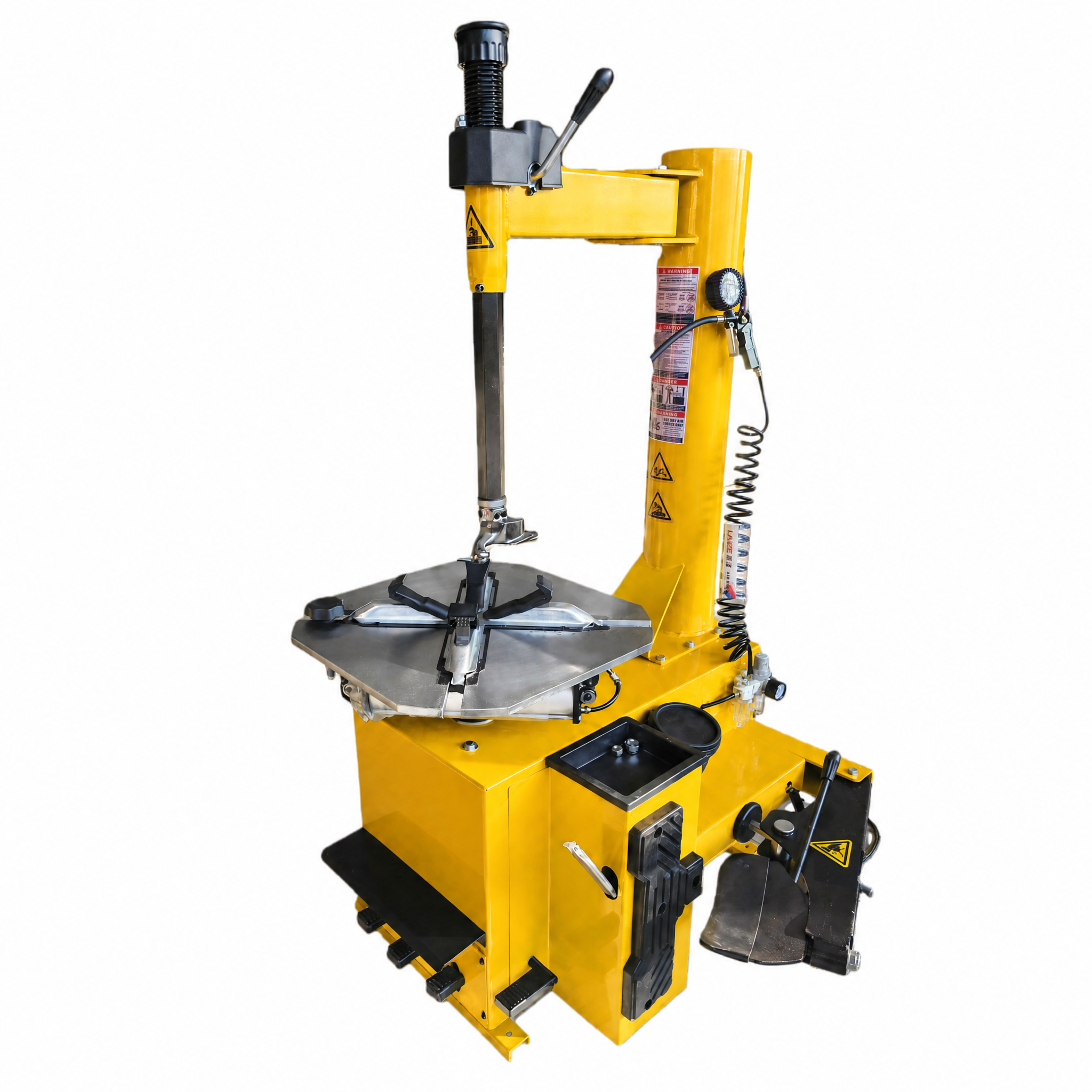

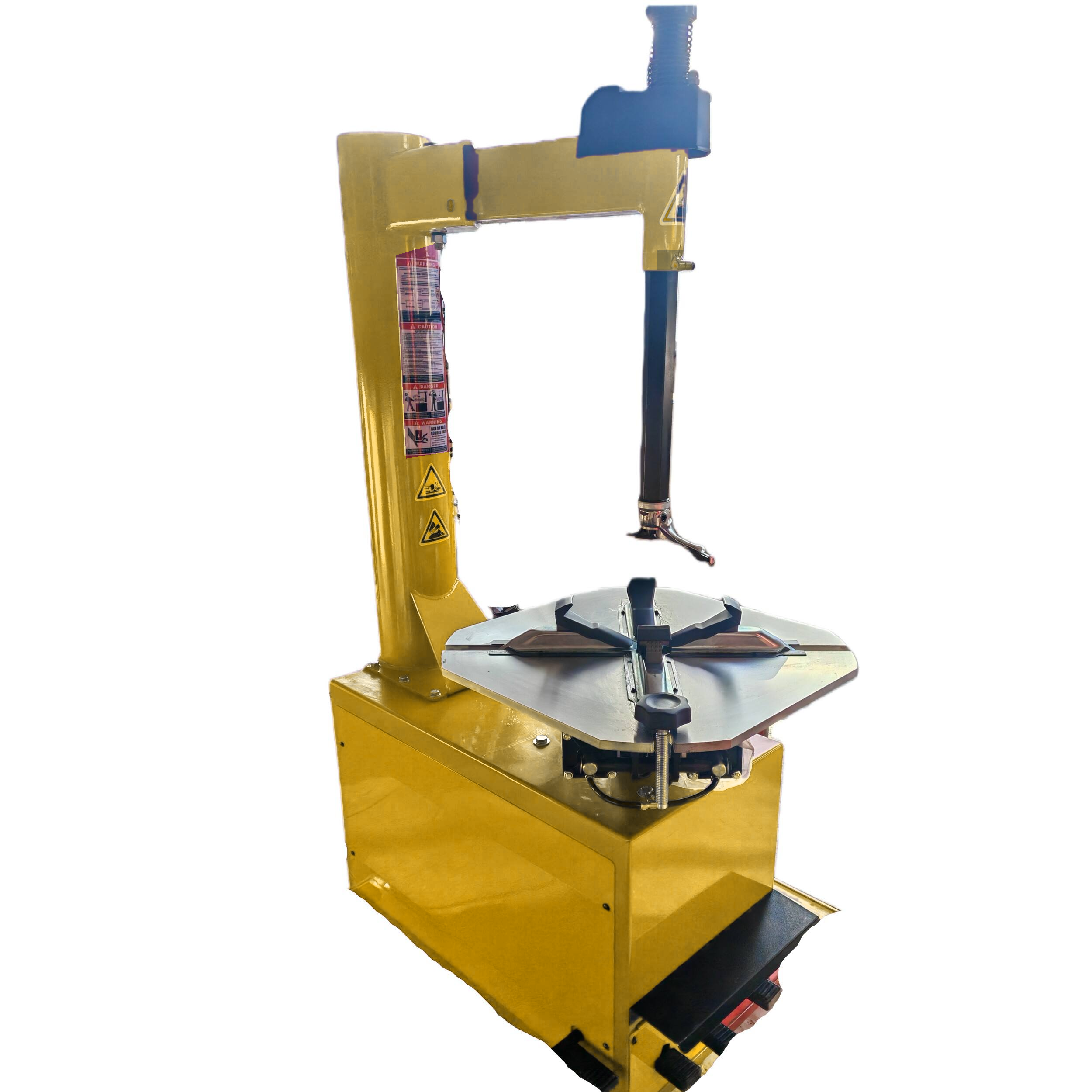

24" Semi-automatic side swing arm tire changer FB-586
The FB-586 is a 24-inch semi-automatic side swing arm tyre changer engineered for efficient, space-saving workshop operation. It handles wheels up to 1040mm in diameter and 350mm in width, with outside clamping from 10" to 22" and inside from 12" to 24". Powered by a 1.1/0.75kW motor and compatible with 110V/220V/380V supplies, it operates on 8–10bar air pressure, delivering 2500kg of bead breaker force while maintaining a low noise level below 70dB. Weighing only 208kg net (238kg gross) and packed in a compact 760×980×860mm footprint, this machine offers exceptional portability and floor-space efficiency without sacrificing power or durability, making it a practical choice for busy professional tyre service environments.
- Overview
- Recommended Products
Key Features:
The FB-586 features a complete steel-iron bead breaker cylinder that ensures outstanding longevity even under continuous heavy use. Its 80mm-diameter clamping cylinder integrates the seal ring and piston into a single unit, significantly reducing internal friction for smoother, more responsive clamping action. The aluminium gearbox lowers overall weight while delivering robust, long-lasting performance. The semi-automatic side swing arm simplifies tyre mounting and demounting, and the pneumatic bead breaker provides powerful, controlled detachment with minimal operator effort. With a noise level below 70dB, it creates a quieter workplace. These durable, low-maintenance components collectively boost productivity, reduce fatigue, and offer excellent value for daily workshop demands.
Specification：
| Power： | 1.1kw/0.75kw |
| Power supply： | 110V/220V/380V |
| Max.wheel diameter： | 1040mm |
| Max.wheel width： | 350mm |
| Outside clamping： | 10″~22″ |
| Inside clamping： | 12"～24" |
| Air supply： | 8bar-10bar |
| Bead breaker force： | 2500kg |
| Noise level： | <70dB |
| G.W./N.W.： | 238KGS/208KGS |
| Packing size： | 760*980*860mm |
Features:
◎ The complete bead breaker cylinder made of steel iron, more durable.

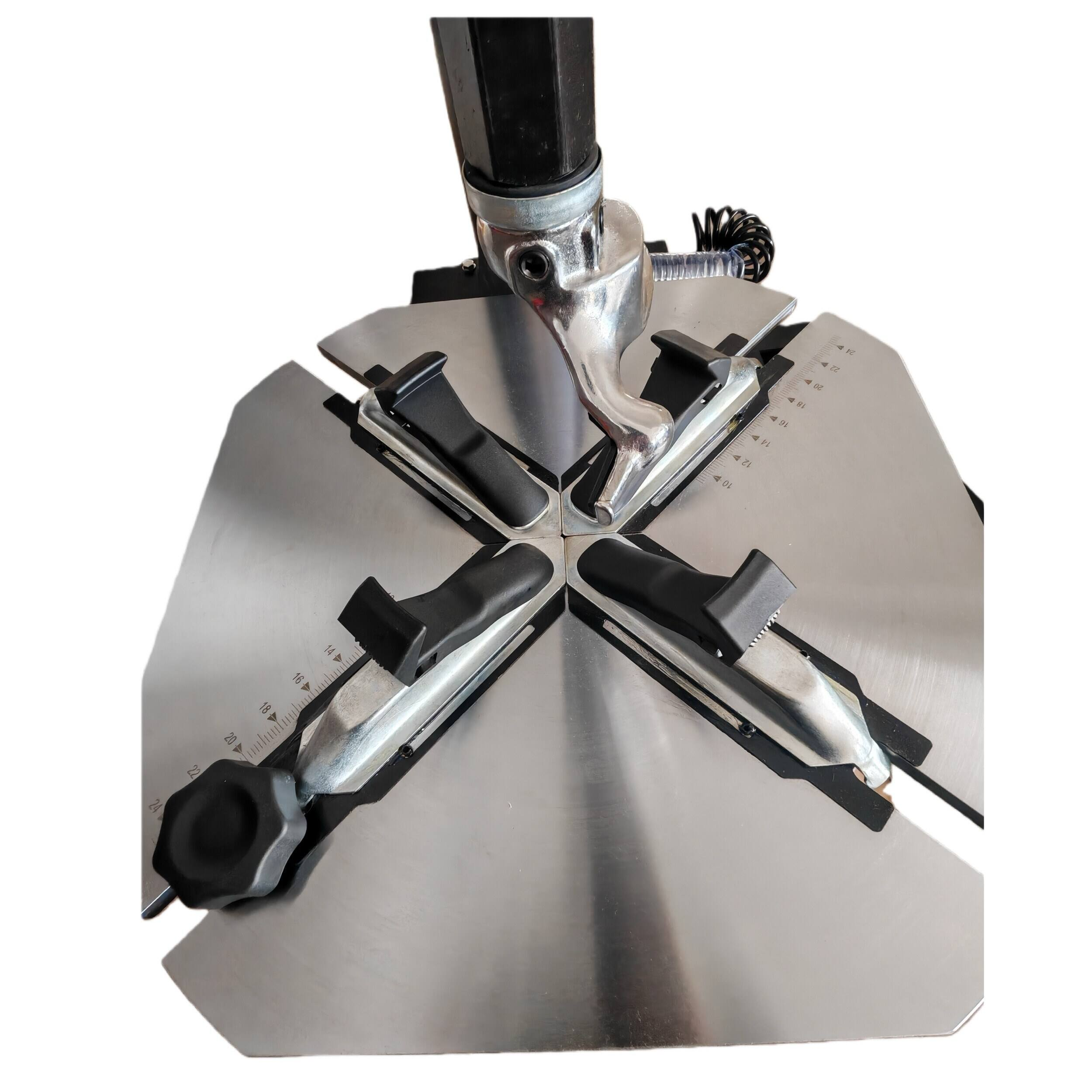

◎ The complete clamping cylinder with ￠80 diameter, the seal ring and the piston are integrated, less resistance.
◎ The complete gearbox made of aluminium, light and more durable.
◎ Semi-automatic side swing arm
◎ Pneumatic bead breaker
Applications:
The FB-586 is ideal for automotive repair shops, tyre retail outlets, and fleet maintenance depots that service passenger cars, SUVs, and light trucks with rim sizes up to 24 inches. Its compact dimensions make it particularly suitable for workshops with limited floor space, yet its powerful bead breaker and wide clamping range enable fast, safe tyre changes. The semi-automatic arm reduces physical strain and accelerates turnaround times for routine repairs, puncture fixes, and seasonal tyre swaps. Whether used in a small independent garage or a high-volume commercial centre, the FB-586 delivers consistent, professional results. Optional accessories further extend its versatility, making it a dependable solution for all light-duty tyre servicing needs.
