FB-884

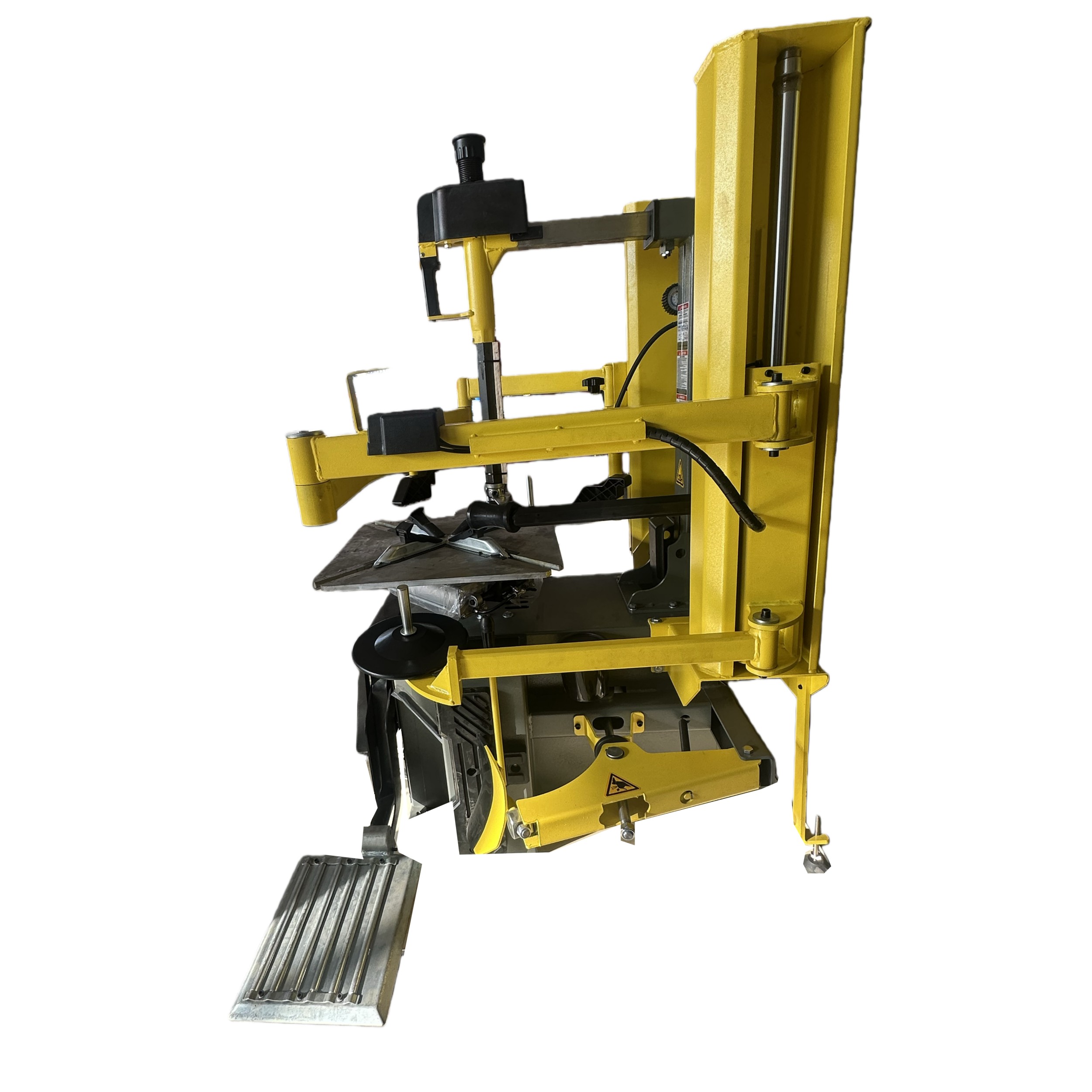

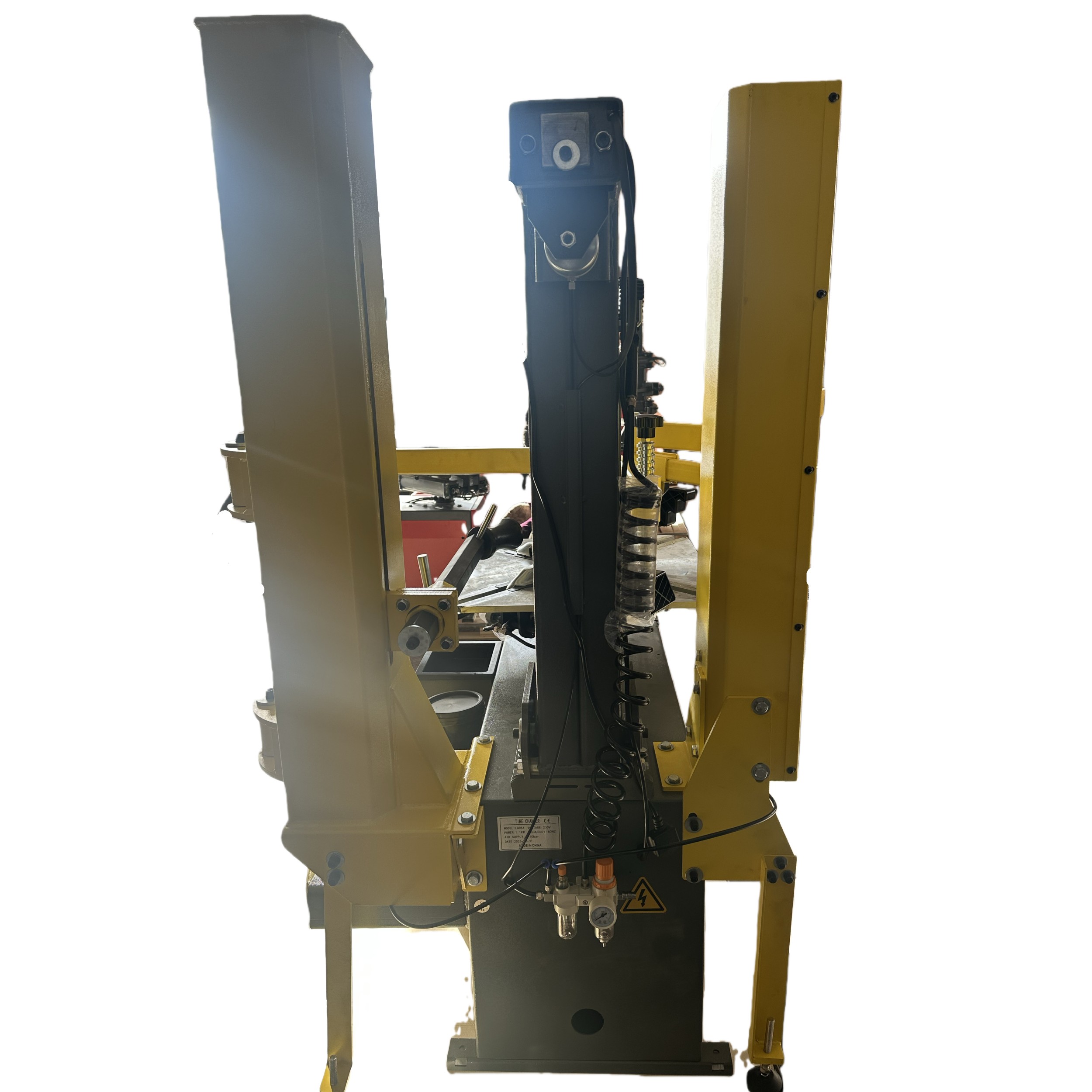

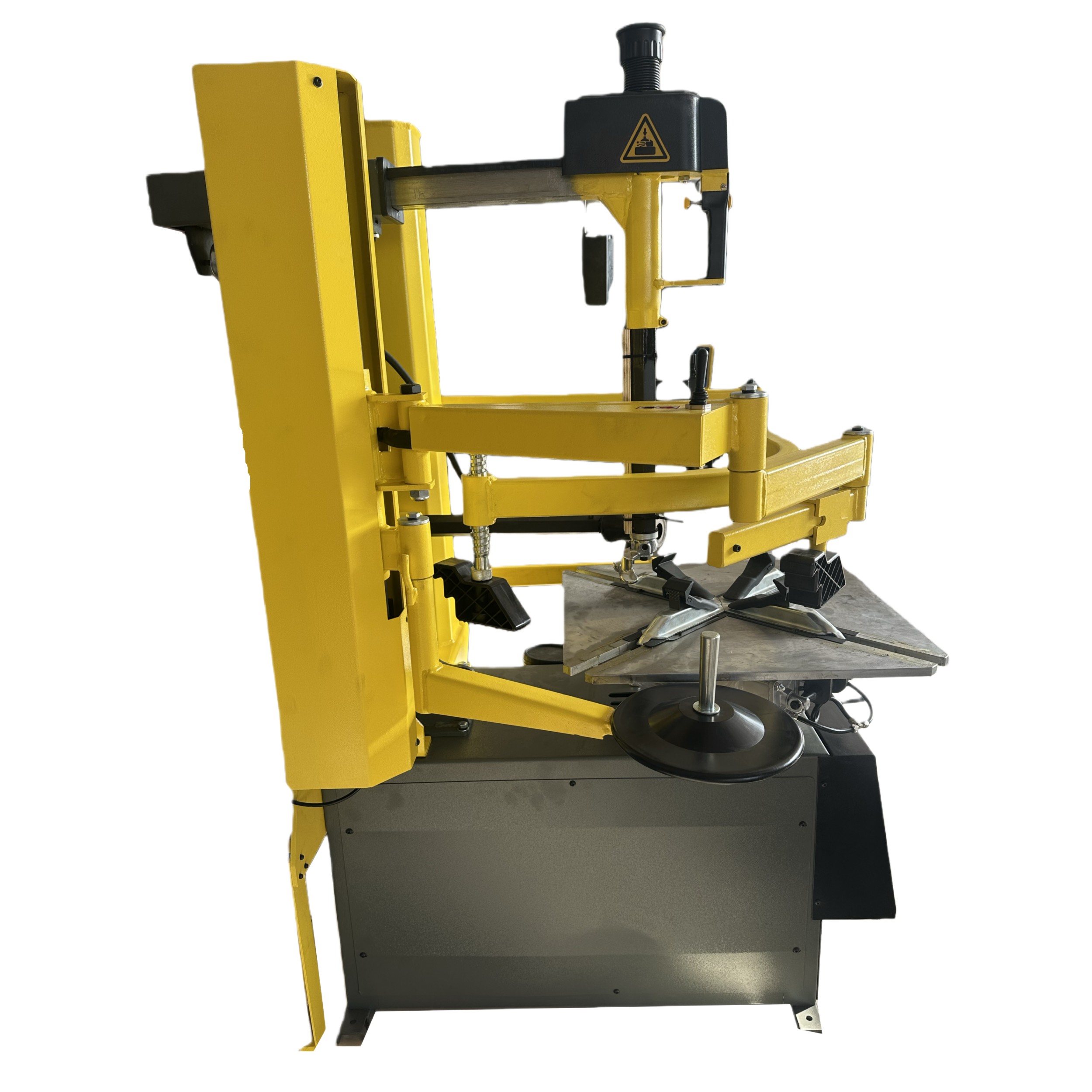

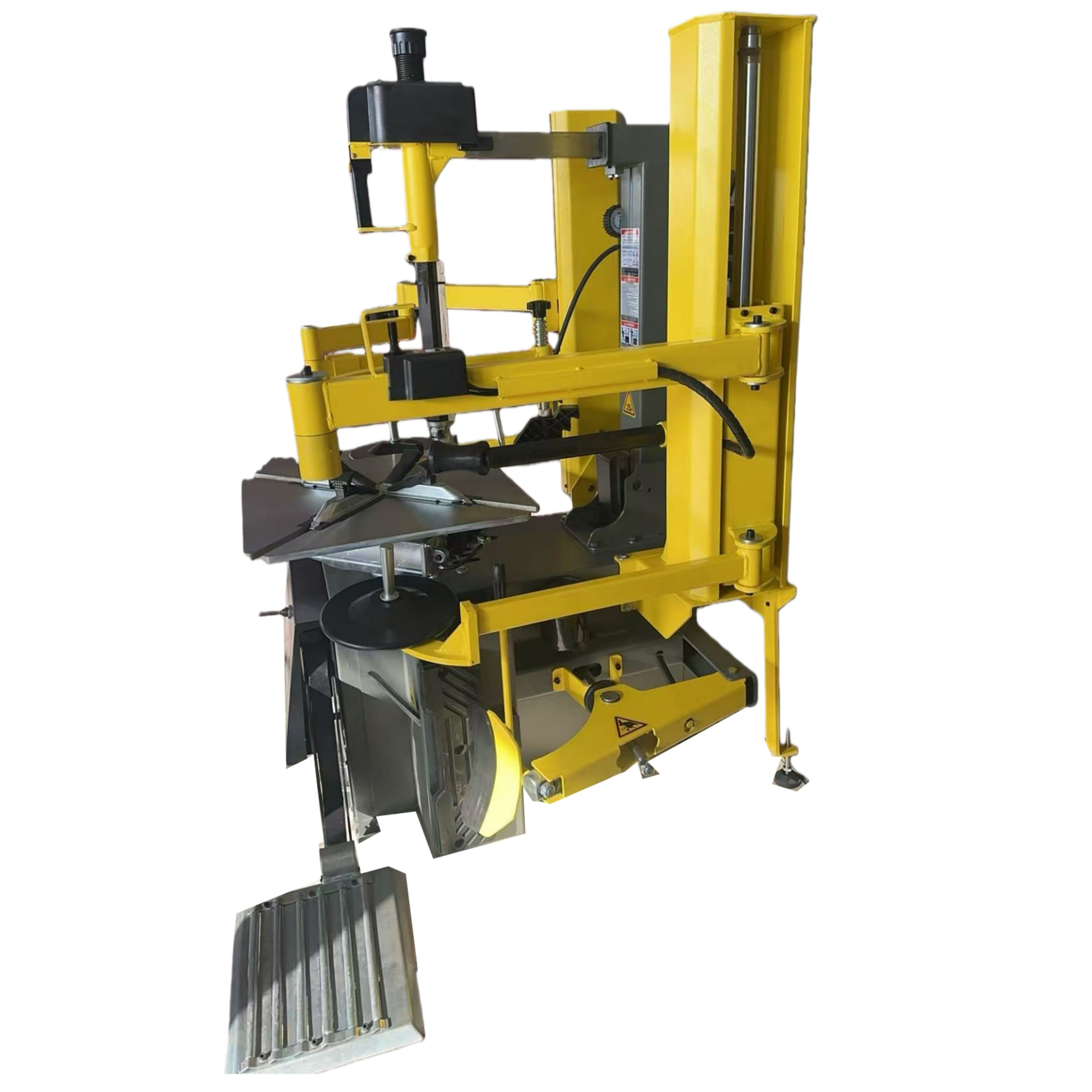

The FB-884 is a pneumatically operated tilting-column tyre changer equipped with double help arms and an integrated quick inflation system supplied from a rear air tank. Designed for rims from 10" to 26", it handles wheels up to 1140mm in diameter and 400mm in width, with outside clamping 10"–24" and inside 12"–26". Powered by a 1.1/0.75kW motor and compatible with 110V/220V/380V, it runs on 8–10bar air pressure, delivering 2500kg of bead breaker force while maintaining noise below 70dB. The machine features a durable steel-iron bead breaker cylinder, an aluminium gearbox, and a robust clamping system. Its flexible packing options (split or single crate) accommodate various workshop layouts and shipping requirements, making it a versatile choice for professional tyre service.

Overview
Recommended Products

Key Features:

The FB-884 incorporates a pneumatically operated tilting column that enables precise arm positioning, complemented by simultaneous pneumatic horizontal and vertical arm lockers for rigid, vibration-free stability during operation. Its complete steel-iron bead breaker cylinder ensures exceptional longevity under intensive use, while the Ø80 clamping cylinder integrates the seal ring and piston into a single unit, significantly reducing internal friction for smooth, responsive clamping. The lightweight aluminium gearbox lowers overall weight without sacrificing strength. Double help arms facilitate handling of stiff, wide, and low-profile tyres, and the pneumatic bead breaker delivers safe, powerful detachment. The built-in quick inflation system from the rear tank streamlines tyre seating, boosting efficiency. With noise below 70dB, it creates a quieter, more comfortable workplace.

Applications:

The FB-884 is ideal for automotive repair centres, tyre retail outlets, and fleet maintenance depots servicing passenger cars, SUVs, light trucks, and modern vehicles with low-profile or wide tyres. Its wide clamping range (10"–26") covers diverse rim sizes, while the double help arms and tilting column significantly reduce operator strain, accelerating routine puncture repairs, seasonal tyre swaps, and high-volume changeovers. The quick inflation system speeds up tubeless tyre seating, enhancing workflow in busy shops. The machine’s robust construction ensures consistent, safe performance even under continuous heavy use. Suitable for both independent garages and commercial fleets, the FB-884 delivers professional results, reduces turnaround times, and represents a reliable long-term investment for demanding tyre service operations.
