TP-2PBPD3 Double-Cylinder Hydraulic Lift With Reinforced Base Plate
The TP-2PBPD3 are produced with steel and applications repairing, maintenance…
- 1820mm (71 7/10”) lifting height.
- Baseplate lift for low ceiling application. Manual two side release
- Reinforced base plate allow for bad concrete
- Drop in type lifting pads with clearance height less than 95mm (3 9/10”)
Products Categories
Get A Free Quote
Two Post Car Lift Details
The 1820mm (71 7/10″) lifting height Base plate lift. This lift is specifically designed for low ceiling applications and features a manual two-side release for convenience. One of the key features of this lift is the optional triple stage arms combination, which allows it to accommodate a wide range of vehicles, from Smart cars to SUVs and light vans. Additionally, the reinforced base plate ensures stability even on bad concrete surfaces. The drop-in type lifting pads with a clearance height of less than 100mm (3 9/10″) provide ease of use, while the automatic arm locks engage when the lift is raised and disengage when fully lowered. Rest assured, our product is CE certified and comes with a durable powder coating for long-lasting performance. The top and bottom pulley mount design also prevents the pulley from coming off.

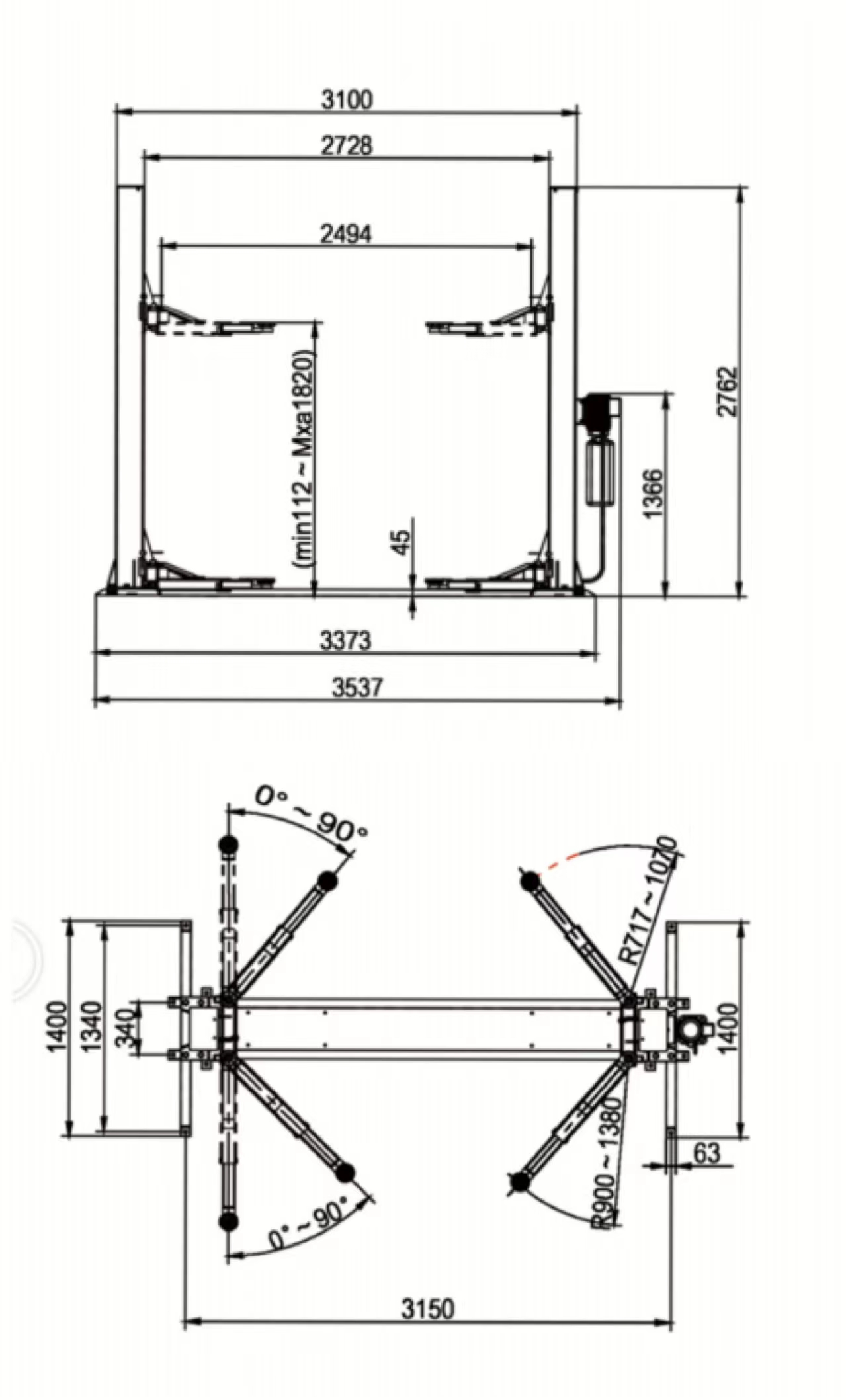

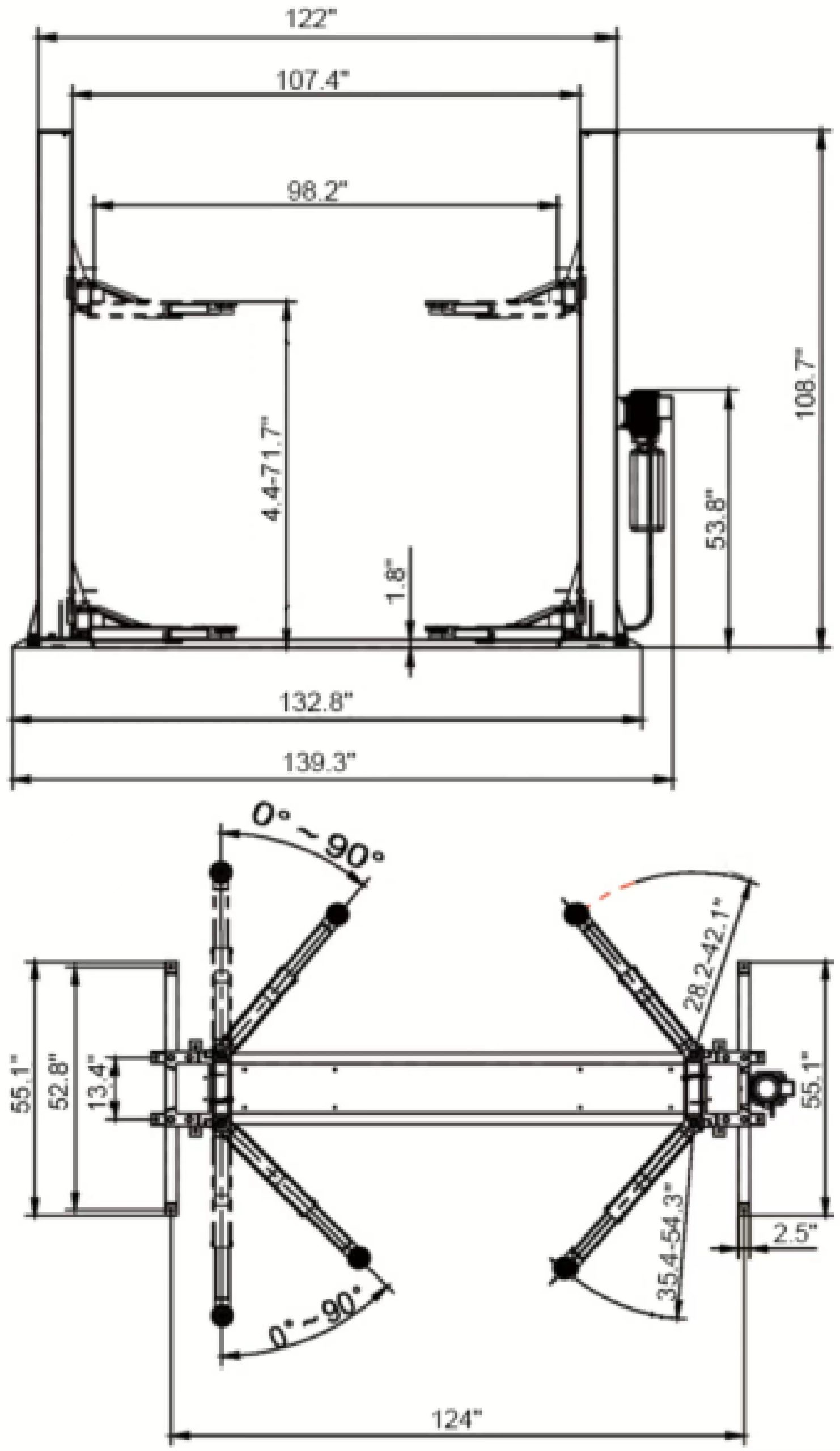

Two Post Car Lift Specifications
| Model | TP-2PBPD3 |
| Capacity | 4000kg / 9000lbs |
| Lifting height | 1820mm/ 71.6‘’ |
| Outer dimensions | 1400*2762*3537mm |
| Power of motor | 2.2kw |
| Power supply | 220v/380v |
| Net weight | 588kg |
| Packing size | 2800*470*740mm |
Two Post Car Lift Application Scenarios
The reinforced base plate is engineered to withstand imperfect concrete, offering a reliable foundation. With ultra-low clearance drop-in lifting pads at less than 95mm, it accommodates a broad spectrum of vehicles. Safety is paramount; our automatic arm locks activate during elevation and release when fully lowered, providing peace of mind.
The TP-2PBPD3’s durability is enhanced by a superior powder coating and a meticulously designed pulley mount system that prevents dislodgement. We’re confident this lift will elevate your operational efficiency and are here to answer any questions or provide additional insights.

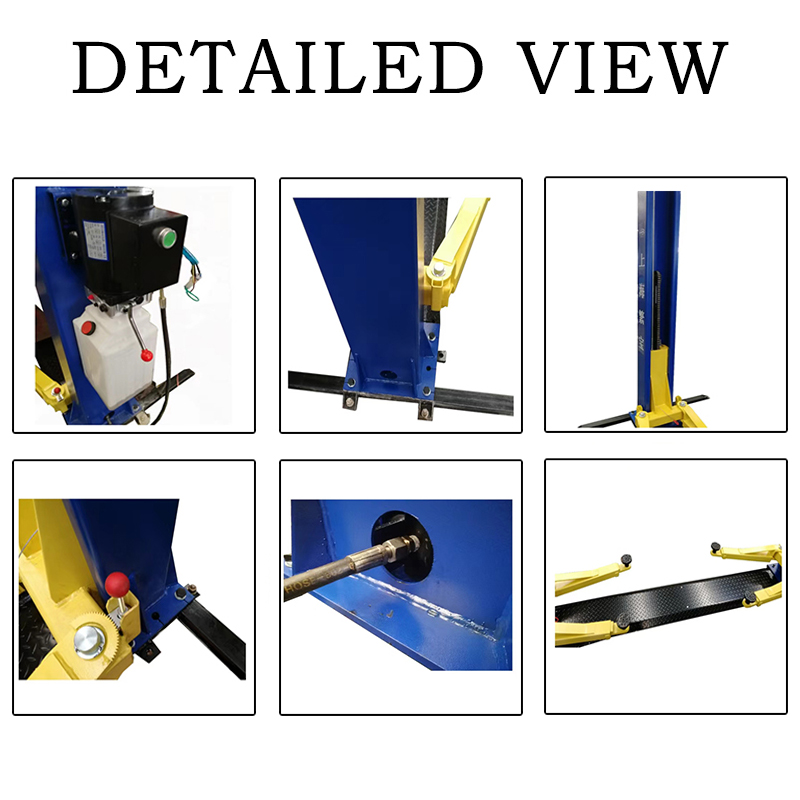

TP-2PBPD3 Double-Cylinder Hydraulic Lift Detail Display
Get Free Quote of TP-2PBPD3 Double-Cylinder Hydraulic Lift
